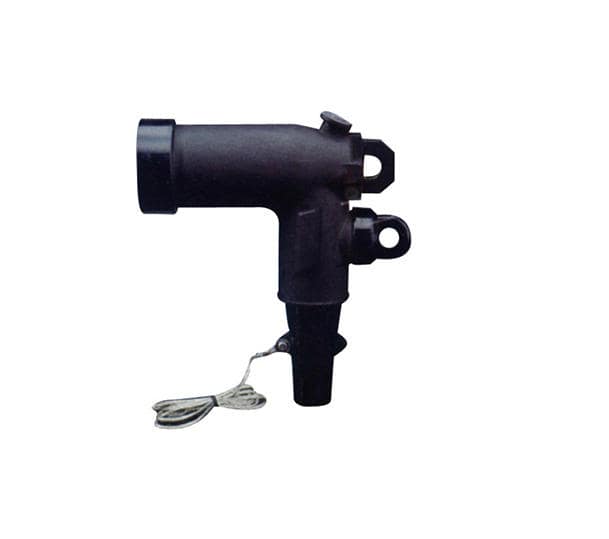

15kV/ 20kV 200A/600A Insulation Protection Cap

15kV 630A insulation protection cap is an accessory of live bushing. It is reserved to provide insulation and seal protection for live bushing lines, and provides dustproof, moisture-proof and seal protection for non-live interface. It is suitable for the inlet and outlet terminals of ring network switchgear (crosslinked power cable). It is suitable for C type casing in EN50180-50181, such as inlet and outlet bushing seat of switch cabinet, wall bushing of cable branch line and double pass bushing.

OEM production is accepted

This is plug type accessories,also named Separable Connectors. It includes separable Elbow,straight and Tee connector kits. Our separable connectors are widely used in switchgears,transformers,cabinets and other electrical equipments.It is made of EPDM or silicone rubber with integrated field control.And adopts advanced triple-layer( a conductive inner layer,an insulation layer and a conductive outer layer) injection technique to guarantee the interface property to avoid gaps between layers and decrease partial discharge maximally.Our separable connectors are mainly includes IEC type & IEEE type.

Standard:

  • EN 50181 Plug-in type bushings above 1kV up to 52kV and from 250A to 2.5kA for liquid filled transformers.
  • EN 50180 Bushings above 1kV up to 36kV and from 250A to 3.15kA for liquid filled transformers.
  • HD629.1 Test requirements on accessories for used on power cables of rated voltage from 3.6/6(7.2)kV up to 20.8/36(42)kV-Part 1:cables with extruded insulation.
  • IEC 60502.4 Power cable with extruded insulation and their accessories for rated voltages from 1kV(U=1.2kV)up to 30kV(U=36kV)-part 4:test requirements on accessories for cable with rated voltages from 6kV up to 30kV(U=36kV.
  • lEc60099 Metal oxide surge arresters without gaps for A.C.systems.
  • JB/T 8952 Polymer-housed metal oxide surge arresters without gaps for A.C.systems.
  • IEEE 386 Separable insulated connector system for power distribution system above 600V.
  • GB11032 Metal oxide surge arresters without gaps for A.C.system.
  • JB/T 8952 Polymer-housed metal oxide surge arresters without gaps for A.C.systems

Type:

Insulating Cap

Insulating Cap

Parameters:

Insulating CapInsulating CapInsulating Cap

Application:

15kV/ 20kV 200A/600A Insulating Cap

  • 200A and 600A insulating caps are accessories for live bushings that provide insulated bushings for live bushings,and also provides dust-proof, moisture-proof envelope.
  • Insulateing cap can be installed in the bushing and busbar, when the electrical wiring lines have reserved backup interface,It must be sealed with an insulating cap.
  • 200A and 600A insulated cap made of high quality silicone rubber, fully insulated, fully sealed, safe and reliable.

Elbow type PT connector

Packing list:

Insulating cap:3 pcs/ carton G.W:3kg
Carton size:17cm×10cm×30cm



Brand

GKP

Type

IEEE type

Application

switchgears, transformers, cabinets

Standard

IEC, IEEE, EN 50180, EN 50181, HD629.1, JB/T 8952

Voltage

15kV 20kV, 200A 600A
