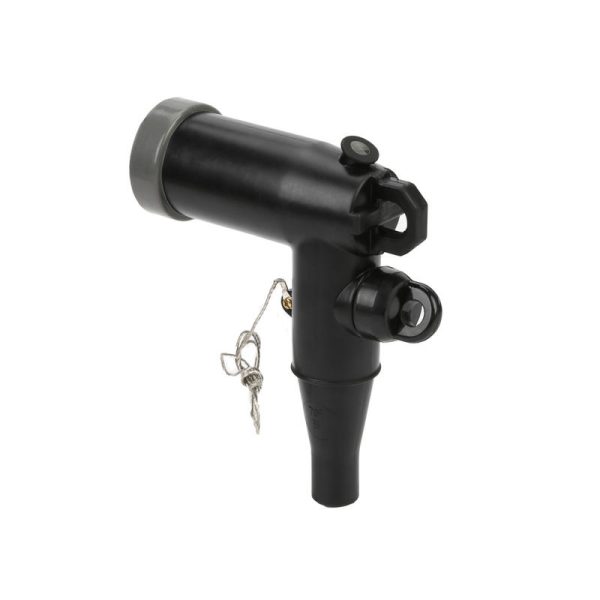

15kV 200A Elbow Type PT Sparable Connectors

15kV shielded elbow plug is used for fully insulated, fully shielded and fully sealed connection on the high voltage side of JDZ12A-10R transformer used for electric operating mechanism to provide operating power or metering. It is suitable for cable cross section of 35-120mm². It is easy to install and simple to use, and has reliable anti-loose device. Product interface in accordance with EN50180-50181 type A casing design.

OEM production is accepted

This is plug type accessories,also named Separable Connectors.It includes separable Elbow,straight and Tee connector kits.Our separable connectors are widely used in switchgears,transformers,cabinets and other electrical equipments.It is made of EPDM or silicone rubber with integrated field control.And adopts advanced triple-layer( a conductive inner layer,an insulation layer and a conductive outer layer) injection technique to guarantee the interface property to avoid gaps between layers and decrease partial discharge maximally.Our separable connectors are mainly includes IEC type & IEEE type.

Standard:

  • EN 50181 Plug-in type bushings above 1kV up to 52kV and from 250A to 2.5kA for liquid filled transformers.
  • EN 50180 Bushings above 1kV up to 36kV and from 250A to 3.15kA for liquid filled transformers.
  • HD629.1 Test requirements on accessories for used on power cables of rated voltage from 3.6/6(7.2)kV up to 20.8/36(42)kV-Part 1:cables with extruded insulation.
  • IEC 60502.4 Power cable with extruded insulation and their accessories for rated voltages from 1kV(U=1.2kV)up to 30kV(U=36kV)-part 4:test requirements on accessories for cable with rated voltages from 6kV up to 30kV(U=36kV.
  • lEc60099 Metal oxide surge arresters without gaps for A.C.systems.
  • JB/T 8952 Polymer-housed metal oxide surge arresters without gaps for A.C.systems.
  • IEEE 386 Separable insulated connector system for power distribution system above 600V.
  • GB11032 Metal oxide surge arresters without gaps for A.C.system.
  • JB/T 8952 Polymer-housed metal oxide surge arresters without gaps for A.C.systems

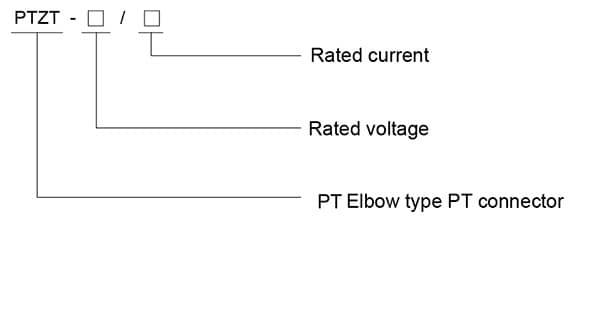

Type:

Elbow Type PT Connector

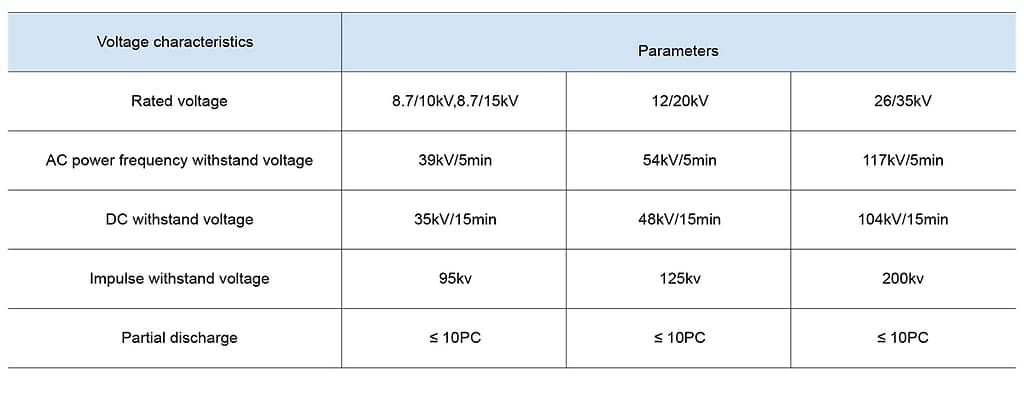

Parameters:

Elbow Type PT ConnectorElbow Type PT ConnectorElbow Type PT ConnectorApplication:

15kV 200A Elbow Type PT Connector

  • Elbow type PT connector is used as full insulation, fully shielded, fully sealed connection for JDZ12A-10R Transformer which providing operating power supply or measuring protection for electric operating mechanism.
  • Applicable for 15kV XLPE cable cross-section of 35mm² ~ 50mm².

1.Ensure its reliability for the full insulation, fully sealed, fully shielded performance,Compare with others,its size is more compact.
2.The test point can be installed with a point of display or fault indicator, in order to display the device is charged and fault status.
3.The inner and outer shield design makes the electric field structure more optimized, the outer shield grounding, effectively keep the outer surface of the cable head zero Potential to ensure personal safety during maintenance operations.
4.The plug can be used between the rear of the cable and shrink tube shrink seal, in order to prevent moisture intrusion cable problems.

Elbow Type PT ConnectorElbow type PT connector



Brand

GKP

Type

IEEE type

Application

switchgears, transformers, cabinets

Standard

IEC, IEEE, EN 50180, EN 50181, HD629.1, JB/T 8952

Voltage

15kV 200A
