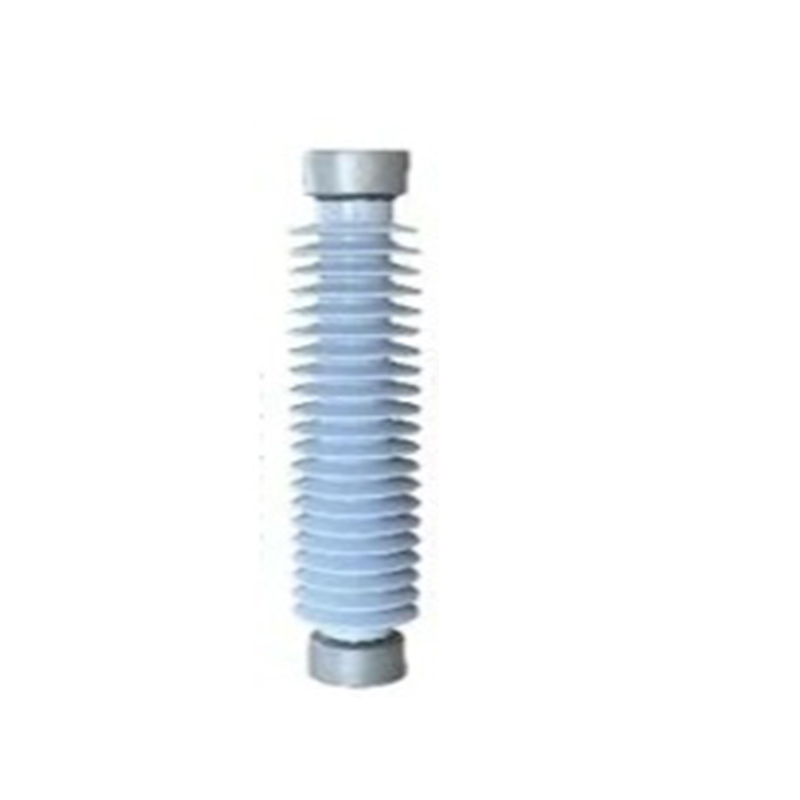

Porcelain Station Post Insulator meeting TR 216.

Meets or exceeds ANSI C29.9 standards for mechanical and electrical ratings
Solid-core construction with gray porcelain glaze as standard
Long lasting durability with galvanized end caps and proven interface system

Wholesales price

OEM production are accepted

Mechanical property:

  • Cantilever Bending Strength – Routine: 1500 lb
  • Fitting – Ground/Base: 3″ BOLT CIRCLE
  • Fitting – Live Line End: 3″ BOLT CIRCLE
  • Material: Porcelain/Ceramic
  • Material – End Fitting: Galvanized Steel
  • Number of Sheds: 16
  • Tensile Strength: Standard Strength
  • Tension Range: 16000 lb
  • Torsional Strength: 15000 in-lbs. (1700 N-m)

Electrical Rating:

  • BIL: 350 kV
  • Creep and Leakage Distance: 72″ (1829 mm)
  • Critical Impulse Flashover (CIFO) – Negative :475 kV
  • Critical Impulse Flashover (CIFO) – Positive :390 kV
  • Flashover Voltage – 60 Hz Dry :235 kV
  • Flashover Voltage – 60 Hz Wet : 180 kV
  • Voltage Application :69 kV
  • Withstand Voltage – 60 Hz Wet :145 kV

Size:

  • Diameter – Shed(s): 7.71″ (196 mm)
  • Height: 30 in
  • Weight: 66.1 lb

Application:

Station Post

Brand

GKP

Package

Pallet

Standard

ANSI

Color

Grey, Brown

Customization

OEM production is accepted
