Porcelain Station Post Insulator meeting TR 289 from porcelain insulator factory

Meets or exceeds ANSI C standards for mechanical and electrical ratings
Solid-core construction with gray porcelain glaze as standard
Long lasting durability with galvanized end caps and proven interface system

Wholesales price from porcelain insulator factory

OEM production are accepted

As a leading porcelain insulator manufacturer , our products have the features as follows:

Mechanical property:

  • Cantilever Bending Strength – Routine: 2203 lb
  • Fitting – Ground/Base: 5″ BOLT CIRCLE
  • Fitting – Live Line End: 5″ BOLT CIRCLE
  • Material: Porcelain/Ceramic
  • Material – End Fitting: Galvanized Steel
  • Number of Sheds: 28
  • Tensile Strength: High Strength
  • Tension Range: 24998 lb
  • Torsional Strength: 90012 in-lbs. (10170 N-m)

Electrical Rating:

  • BIL: 650 kV
  • Creep and Leakage Distance: 116″ (2947 mm)
  • Critical Impulse Flashover (CIFO) – Negative :900 kV
  • Critical Impulse Flashover (CIFO) – Positive :710 kV
  • Flashover Voltage – 60 Hz Dry :435 kV
  • Flashover Voltage – 60 Hz Wet : 335 kV
  • Voltage Application :138 kV
  • Withstand Voltage – 60 Hz Wet :275 kV

Size:

  • Diameter – Shed(s): 8.27″ (210 mm)
  • Height: 54 in
  • Weight: 169.3 lb

Application:

Station Post

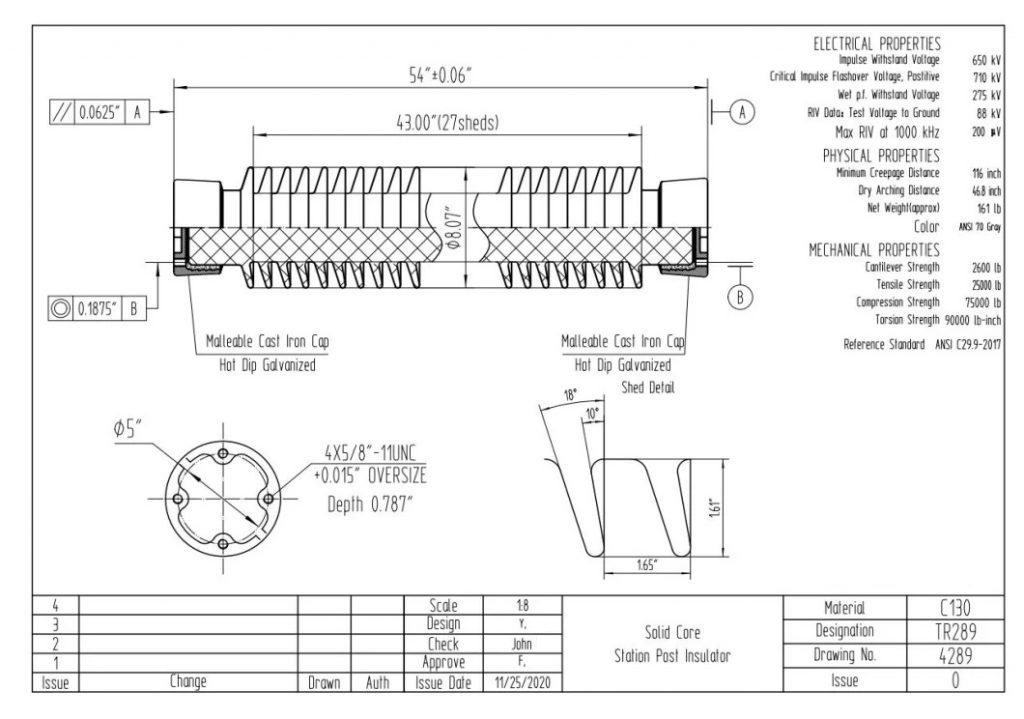

Drawing:

porcelain post insulator

Are you interested in our products? Contact us now.

Brand

GKP

Package

Pallet

Standard

ANSI

Color

Grey, Brown

Customization

OEM production is accepted
