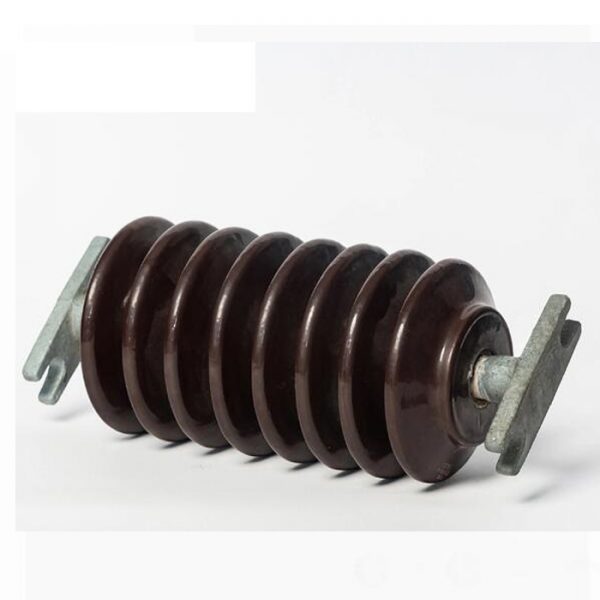

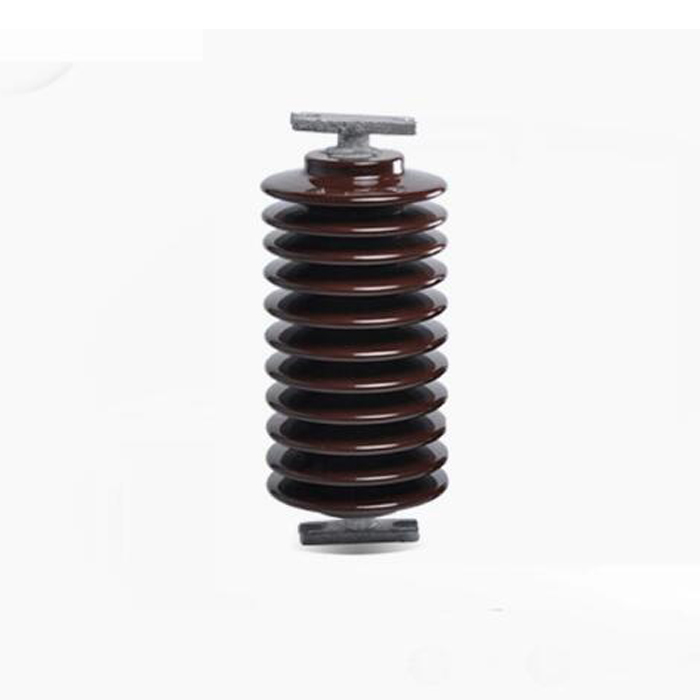

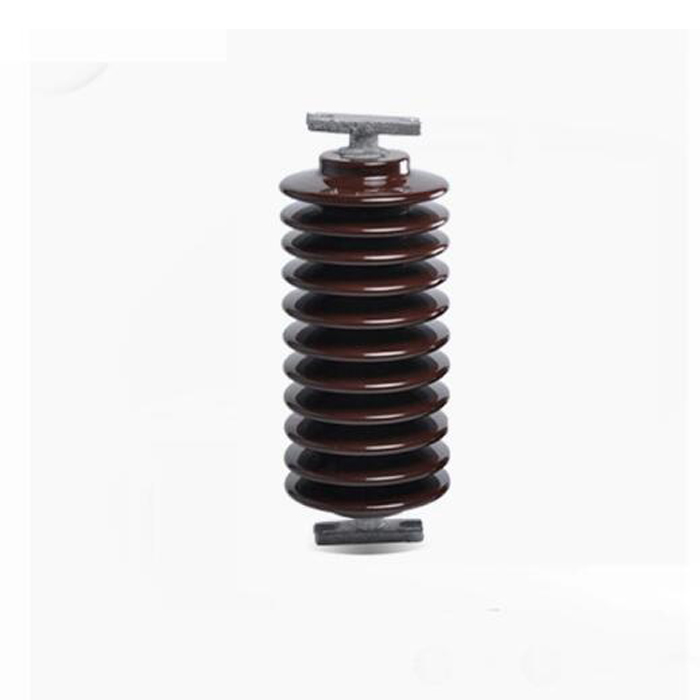

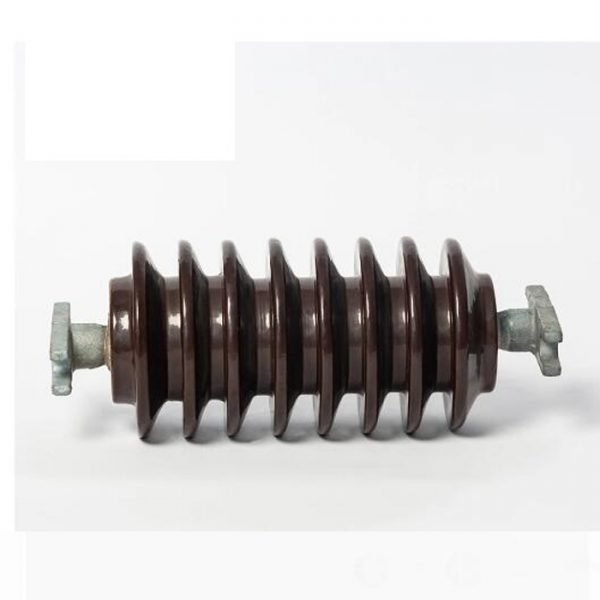

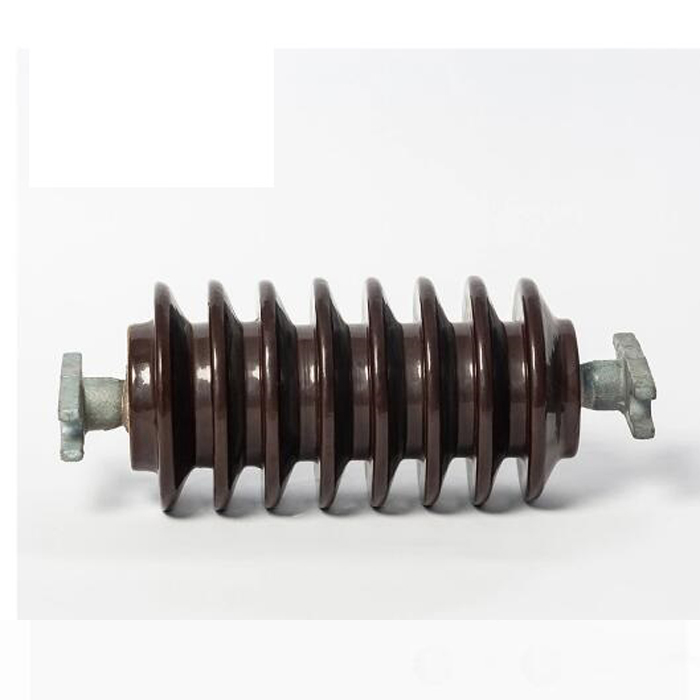

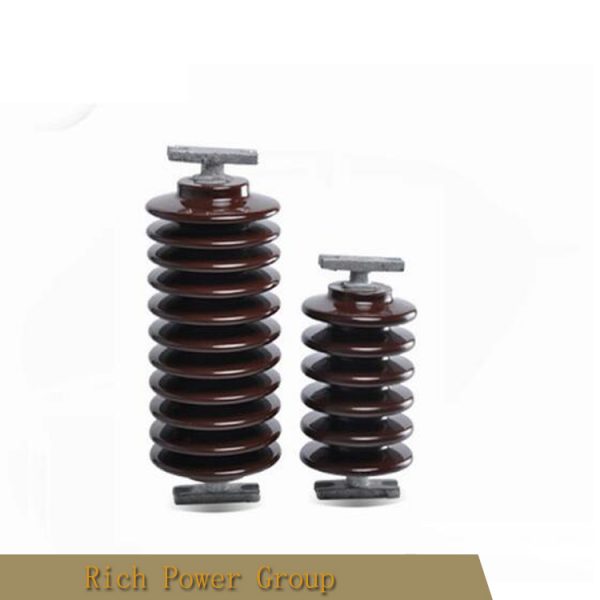

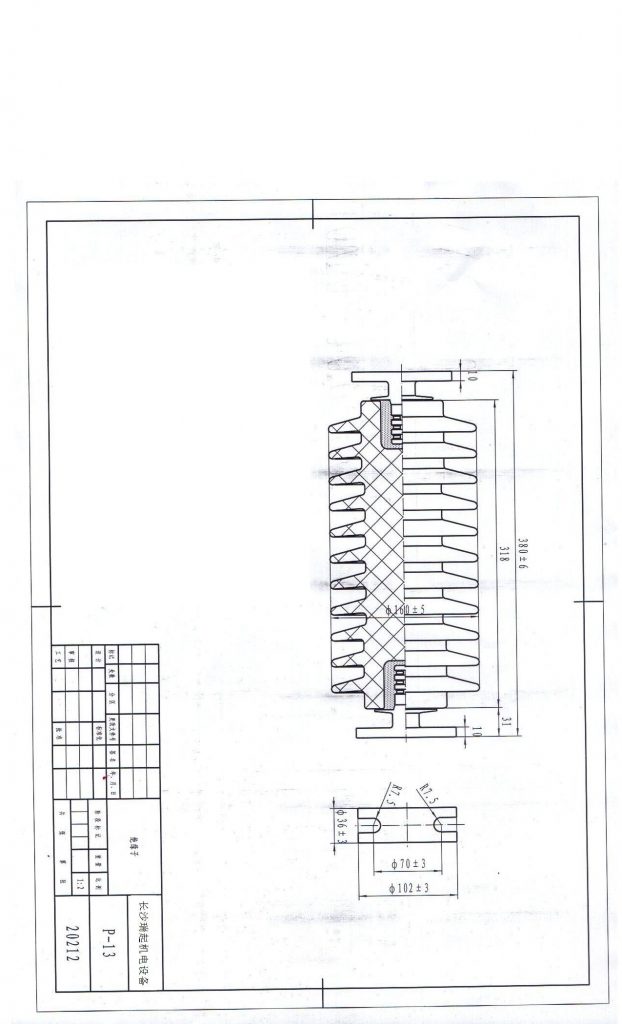

P50 P70 P80 P13 type post porcelain insulator for switch disconnector
We can produce them for you with fittings or without fittings, all will follow your requirement.
Specifications and Types:
Applications:

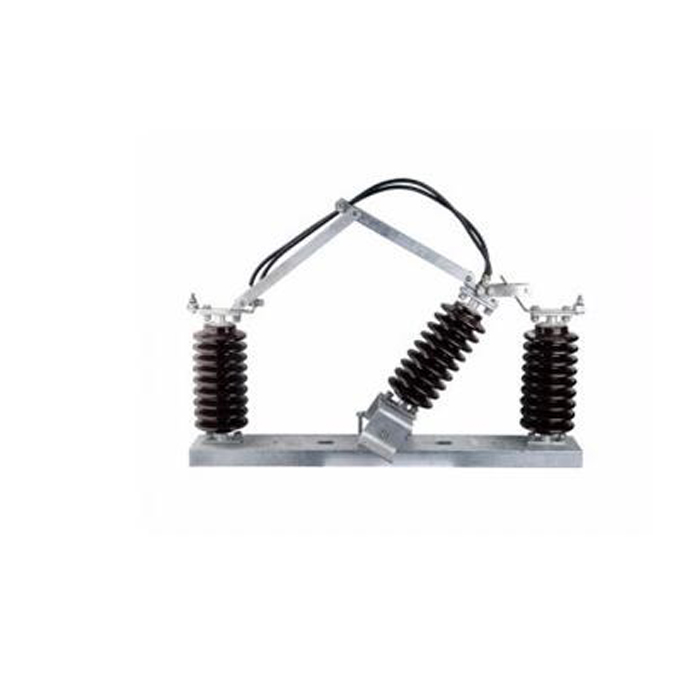

Application: Specifically designed as the insulating support for outdoor high-voltage switch disconnectors and grounding switches.
Material: High-grade alumina porcelain with brown or gray glazing (per customer preference).
Mechanical Integrity: High cantilever and torsional strength to withstand the stresses of switching operations.
Customization: Available as bare porcelain units or pre-assembled with galvanized steel/iron fittings.
Key Parameters:

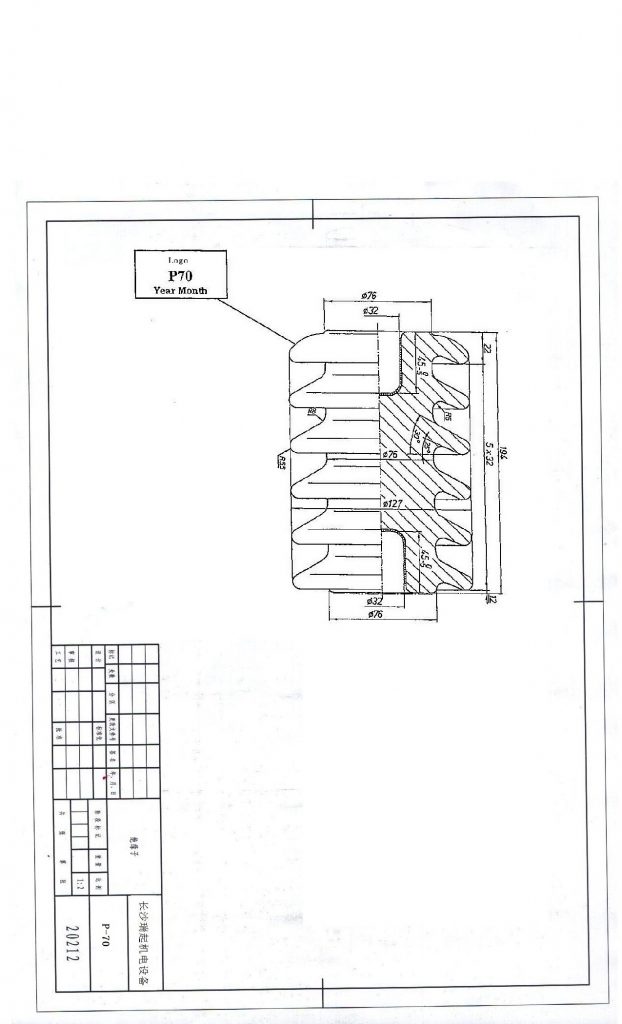

P70 Height: 196mm (as per technical drawing).
P70 Shed Diameter: 127mm.
Mounting: Standard internal/external thread inserts.
