Professional Manufacturer of porcelain bushing for power transformers. We offer good OEM production services also.
Fully Compliant with ANSI/IEEE Standards for Power Transformers, Distribution Units, and Switchgear.
Compliance: ANSI Type / IEEE C57 Series
Voltage Range: 1.2kV to 38kV
BIL Performance: Up to 250kV (High Dielectric Strength)
Material: High-grade Wet Process Electrical Porcelain
Product including :

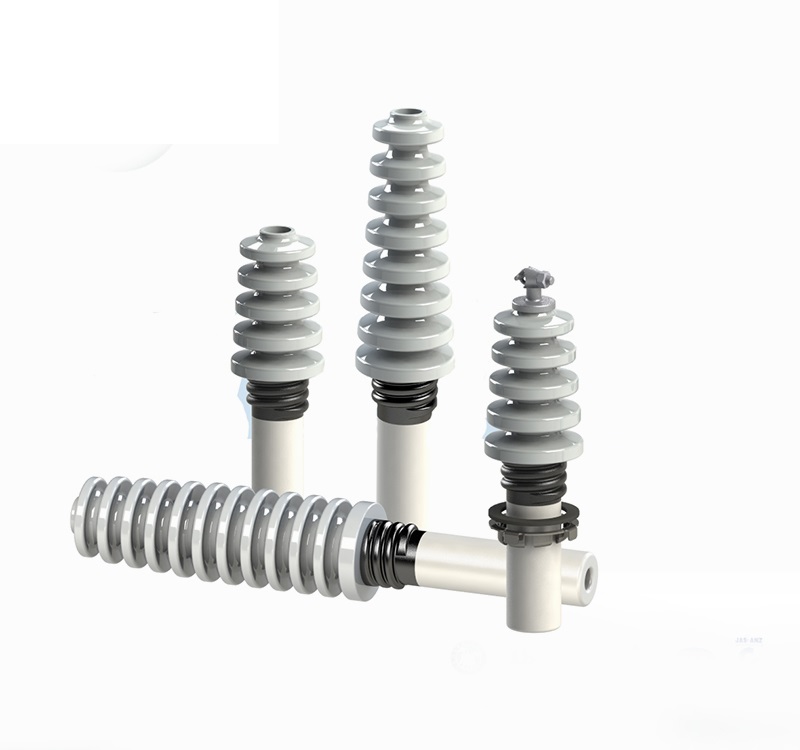

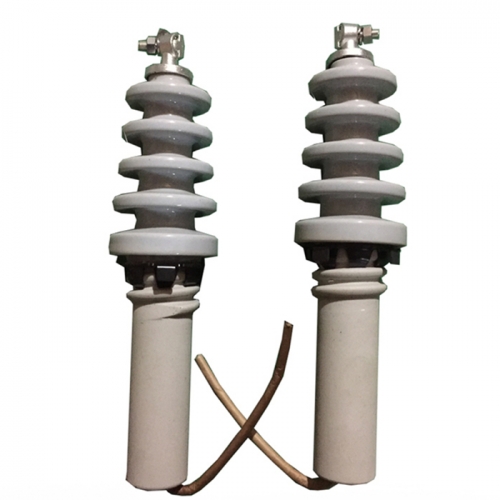

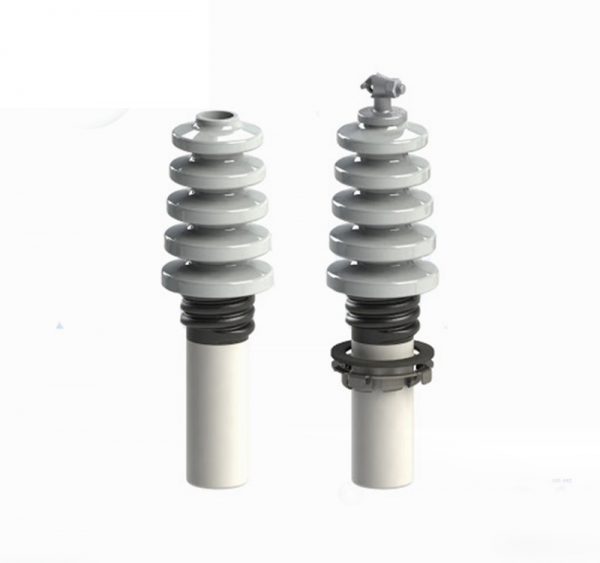

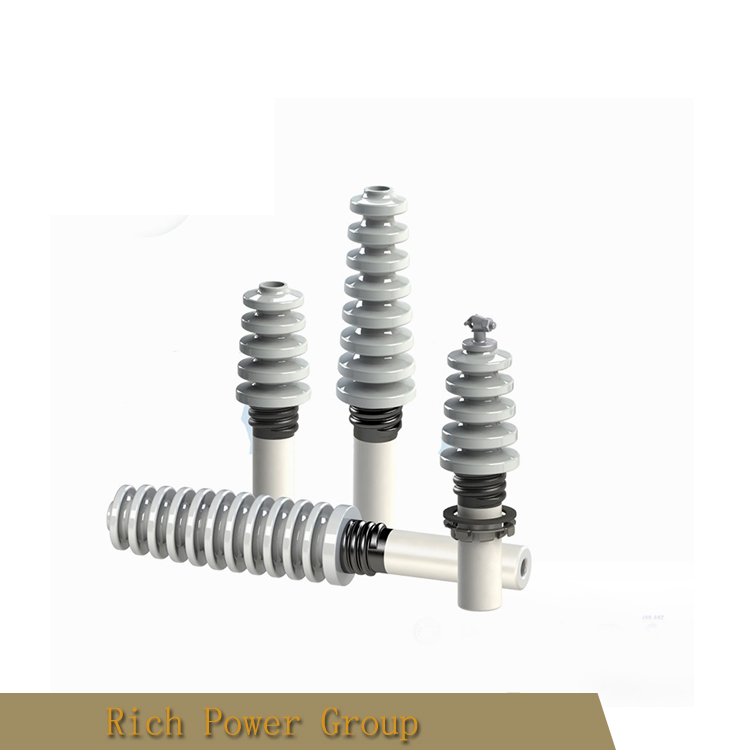

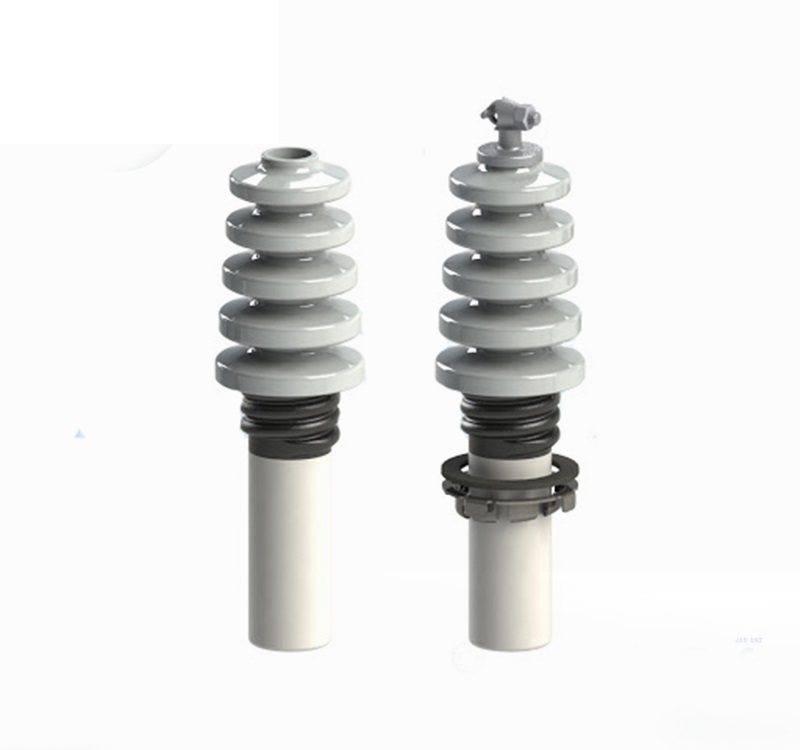

- ANSI Type High Voltage Bushing Assemblies:
27KV-150KV BIL , 15KV-110/125 KV BIL , 38KV-200/250KV BIL - ANSI Type High Voltage Bushing Insulators:

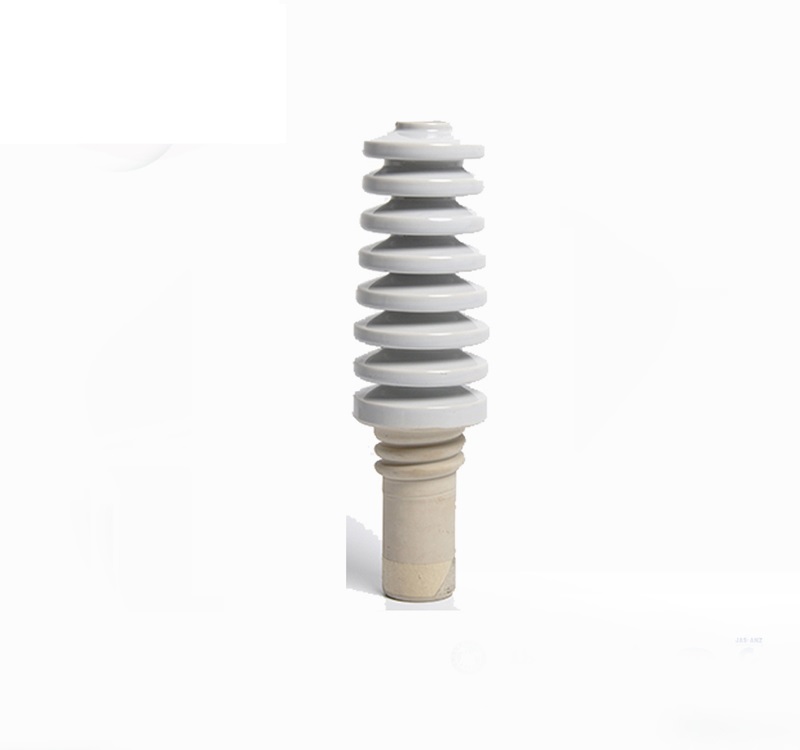

15kV-95kV BIL, 25kV-150kV BIL, 18kV-125kV BIL, 25kV-150kV BIL, 34.5kV-200kV BIL, 8.7kV-75kV BIL - ANSI Type Low Voltage Bushing Assemblies:
1.2 kV Class 30 kV BIL Eyebolt Style, Porcelain Bushing, Threaded Shank 1.44″ Dia Tank Hole Size - ANSI Type Low Voltage Bushing Insulators:
1.2 kV-30 kV BIL, 1.2 kV-45 kV BIL, 2.5 kV-45 kV BIL, 2.5 kV-60 kV BIL, 5.0 kV-75 kV BIL

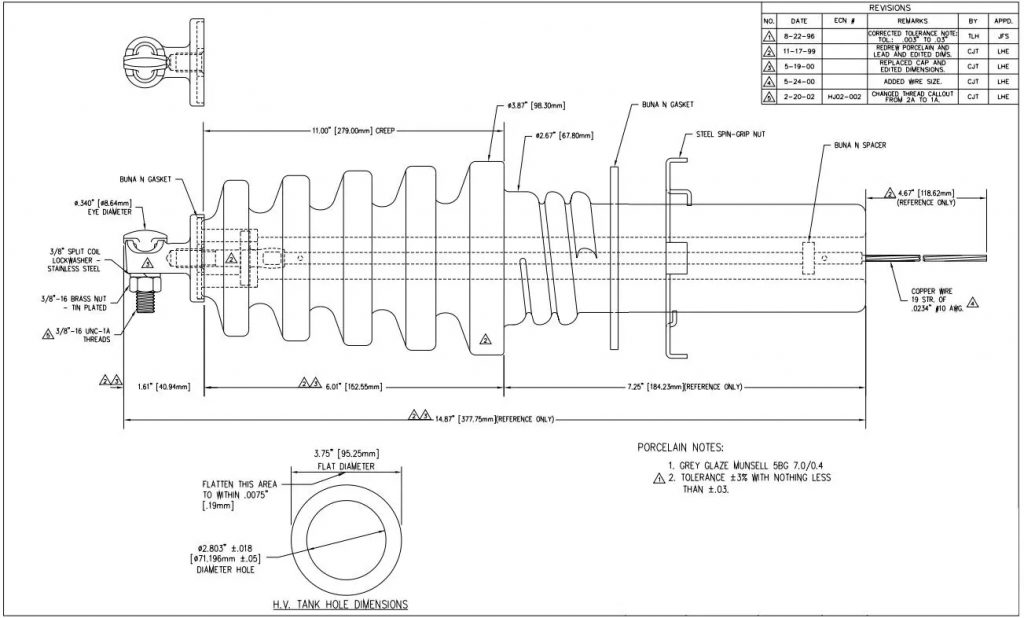

I. High Voltage (HV) Bushing Series
Engineered for superior arc resistance and external insulation in medium-to-high voltage applications.
II. Low Voltage (LV) Bushing & Eyebolt Assemblies
Compact, reliable connections for secondary side distribution.

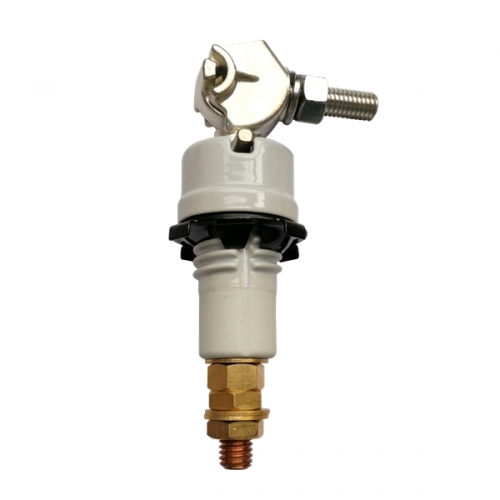

1.2kV Class (30kV BIL): Eyebolt style with Threaded Shank.
Tank Hole Size: Fits standard 1.44″ (36.5mm) diameter openings.
Voltage Range: 1.2kV up to 5.0kV (75kV BIL).
Configurations: Complete assemblies (includes gaskets, hardware, and connectors) or insulators only.
4. Solving Procurement Pain Points
1. Guaranteed ANSI Interchangeability
We understand that “Standard” must mean standard. Our bushings are designed to meet exact ANSI dimensional requirements, ensuring they fit your existing transformer tanks without costly field modifications.
2. Mechanical Integrity (The “Thread & Seal” Factor)
Hardware: Heavy-duty brass or tin-plated bronze terminals for superior conductivity.
Sealing: High-performance NBR/Cork gaskets provided to ensure a leak-proof seal against transformer oil or SF6 gas.
Porcelain Quality: Non-porous, glazed wet-process porcelain for maximum sheds’ self-cleaning and UV stability.
3. Rigorous Testing & Compliance
Every assembly undergoes:
Dimensional Verification: To ensure 100% fit-rate.
Power Frequency Withstand Test: Validating insulation safety.
Visual Inspection: Zero-tolerance for glaze defects or hair-cracks.
