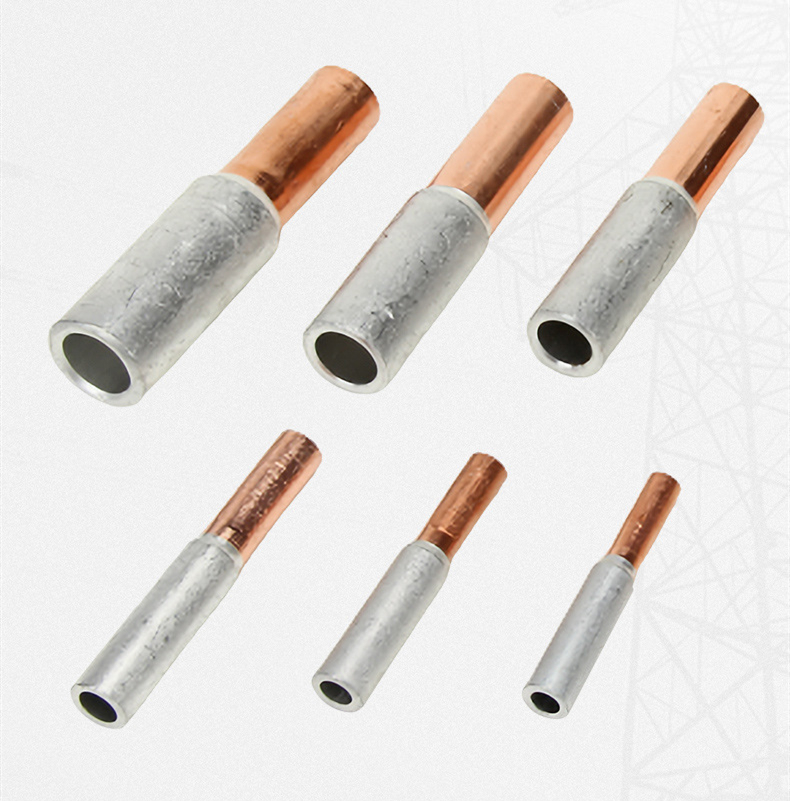

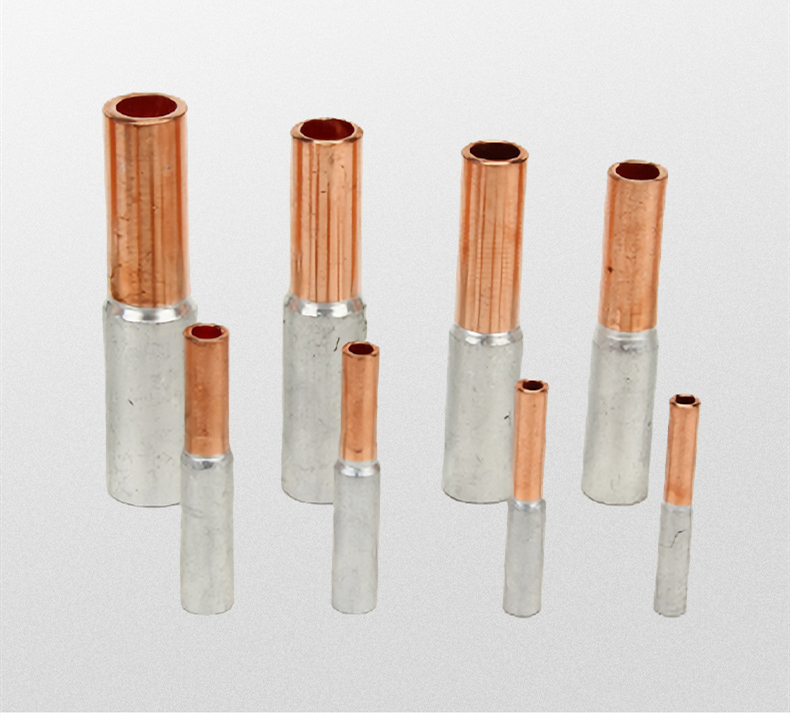

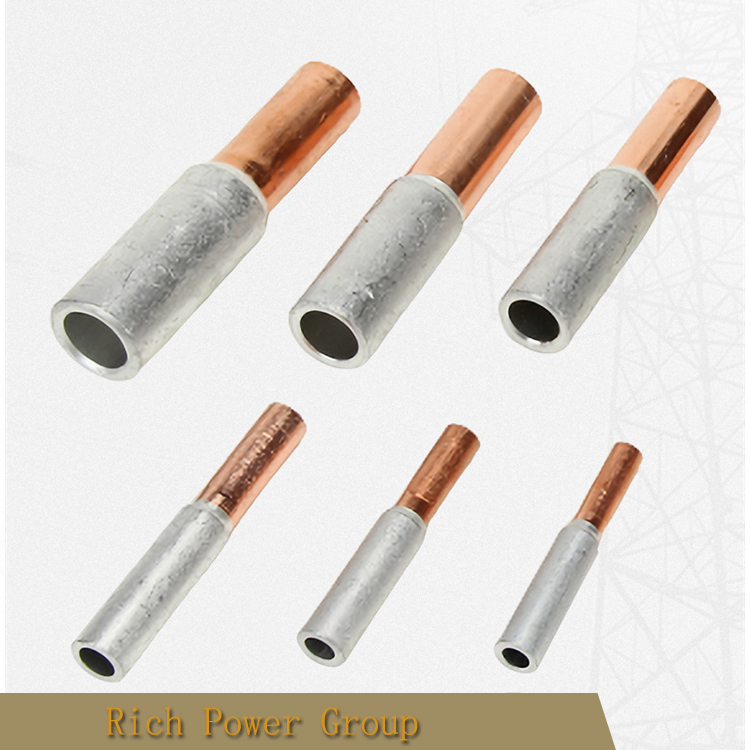

Cable lug And Wire Terminals GTL type Copper-Aluminum Bimetal Cable Terminal Lug Power Lug Wire Connector

Terminal connectors are used to connect tap conductors to power equipment(transformer, circuit breaker, disconnect switch. etc) to the wall bushing of the substation aluminum connectors are also used to conduct of T-connectors.

Material:E-CU A1-99.5%
Surface treatment: Bright
Product property: Due to the coupling effect when aluminum comes in contact with copper corrosion will happen in a short time currently the best solution is to use aluminum-copper bimetal connectors, A bimetal link should be used for joint the friction welding is well done and its aluminum barrel capped is filled with joint compound to avoid oxidization.

The wiring terminal is used to facilitate the connection of wires. In fact, it is a metal sheet sealed in insulating plastic. There are holes at both ends to insert wires, and screws are used to fasten or loosen. For example, two wires sometimes need to be connected and sometimes need to be disconnected. At this time, they can be connected with terminals and disconnected at any time without welding or winding them together, Very convenient and fast. Moreover, it is suitable for the interconnection of a large number of wires. In the power industry, there are special terminal blocks and terminal boxes, all of which are wiring terminals, single-layer, double-layer, current, voltage, ordinary, breakable, and so on. A certain crimping area is to ensure reliable contact and sufficient current.

GTL cable lugsGTL cable lugsGTL cable lugs



dhl cable lugs

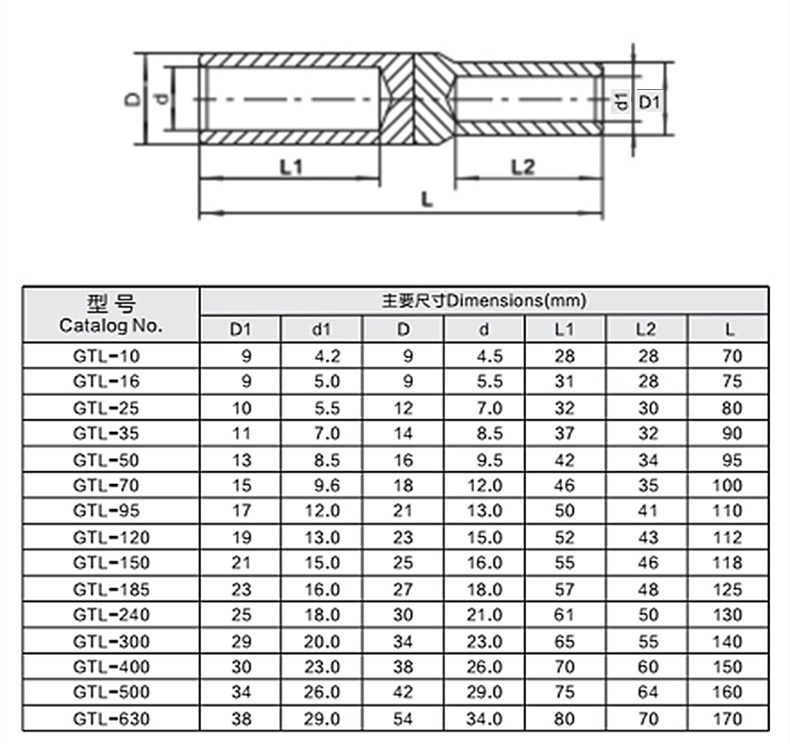

 Specifications and Types:

GTL cable lugs

A corner of the workshop:

dhl cable lugs dhl cable lugs dhl cable lugs

FAQs of Products

Yes, we can do OEM & ODM production for you fully according to your requriements including the standard requirement or your drawings. Or you tell us your requirements, we will make the drawings for your approval.
