Selecting the right ZnO varistor blocks for surge arresters is a crucial decision for electrical engineers, procurement professionals, and system designers. Varistor blocks made of zinc oxide (ZnO) play a central role in protecting electrical equipment from transient overvoltages caused by lightning strikes and switching surges.
In this comprehensive guide, we explain what ZnO varistor blocks are, why quality matters, and how to choose the best products that ensure reliable performance and long service life.
What Are ZnO Varistor Blocks?
A ZnO varistor block is an electrical component used inside surge arresters to absorb and dissipate high-energy transient voltages. The zinc oxide ceramic material exhibits a non-linear voltage-current characteristic, meaning it remains highly resistive under normal conditions but changes to low resistance during surge events.
This rapid transition allows the varistor block to clamp excessive voltage, protecting connected equipment and minimizing damage.
Why Quality Matters
Not all ZnO varistor blocks are created equal. Choosing poor-quality components can lead to:
✔ Reduced surge energy absorption
✔ Premature failure under stress
✔ Inaccurate voltage clamping
✔ Safety hazards and increased downtime

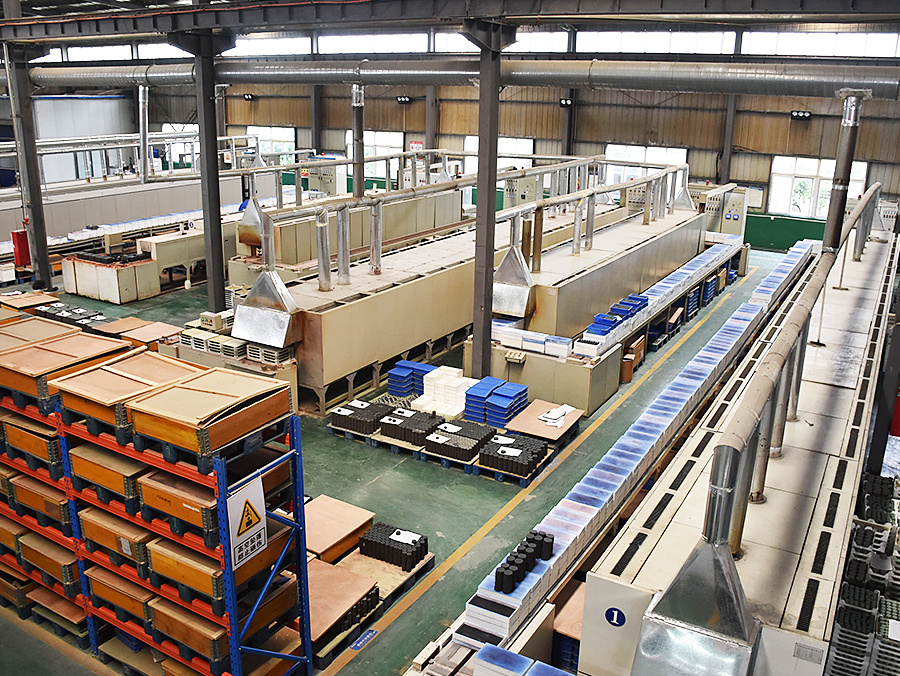

High-quality varistor blocks are manufactured under strict process controls and tested to meet international standards, ensuring consistent performance over time.
Key Selection Criteria
1. Voltage Rating
The voltage rating defines the maximum continuous operating voltage the varistor block can withstand without degradation. Always match the rated voltage to your system’s nominal voltage.
✔ Too low → premature failure
✔ Too high → reduced protection efficiency
2. Energy Absorption Capacity
Energy absorption is a key performance metric. A higher energy rating means the varistor block can safely absorb larger transient surges without damage.
Check the manufacturer’s specifications for energy absorption at standard test conditions.
3. Operating Temperature
ZnO varistor blocks generate heat during surge events. High-quality blocks are designed to withstand elevated temperatures and maintain stable performance.
Look for temperature ratings that exceed your system’s ambient conditions.
4. Standards and Certifications
Ensure the product complies with recognized standards such as:
- IEC 60099 series
- ANSI/IEEE surge arrester guidelines
- ISO 9001 quality management certification
Standards compliance ensures consistent manufacturing quality and reliable field performance.
Common Applications
ZnO varistor blocks are widely used in:
- Distribution and transmission surge arresters
- Industrial power systems
- Renewable energy installations
- Utility substations
Their robust design protects sensitive equipment from transient overvoltages in diverse environments.
Inspection and Testing Tips
Before installation, inspect the varistor blocks for:
✔ No visible cracks or chips
✔ Uniform surface finish
✔ Clear rating labels and datasheets
Consider requesting third-party test reports when working with high-voltage systems.
Related Products
Explore these related components to build a complete surge protection solution:
Choosing good quality ZnO varistor blocks is essential for reliable surge protection. By focusing on voltage ratings, energy absorption, temperature performance, and standards compliance, you can ensure the safety and longevity of your electrical systems.
For detailed product information, custom specifications, and pricing, feel free to contact us.
