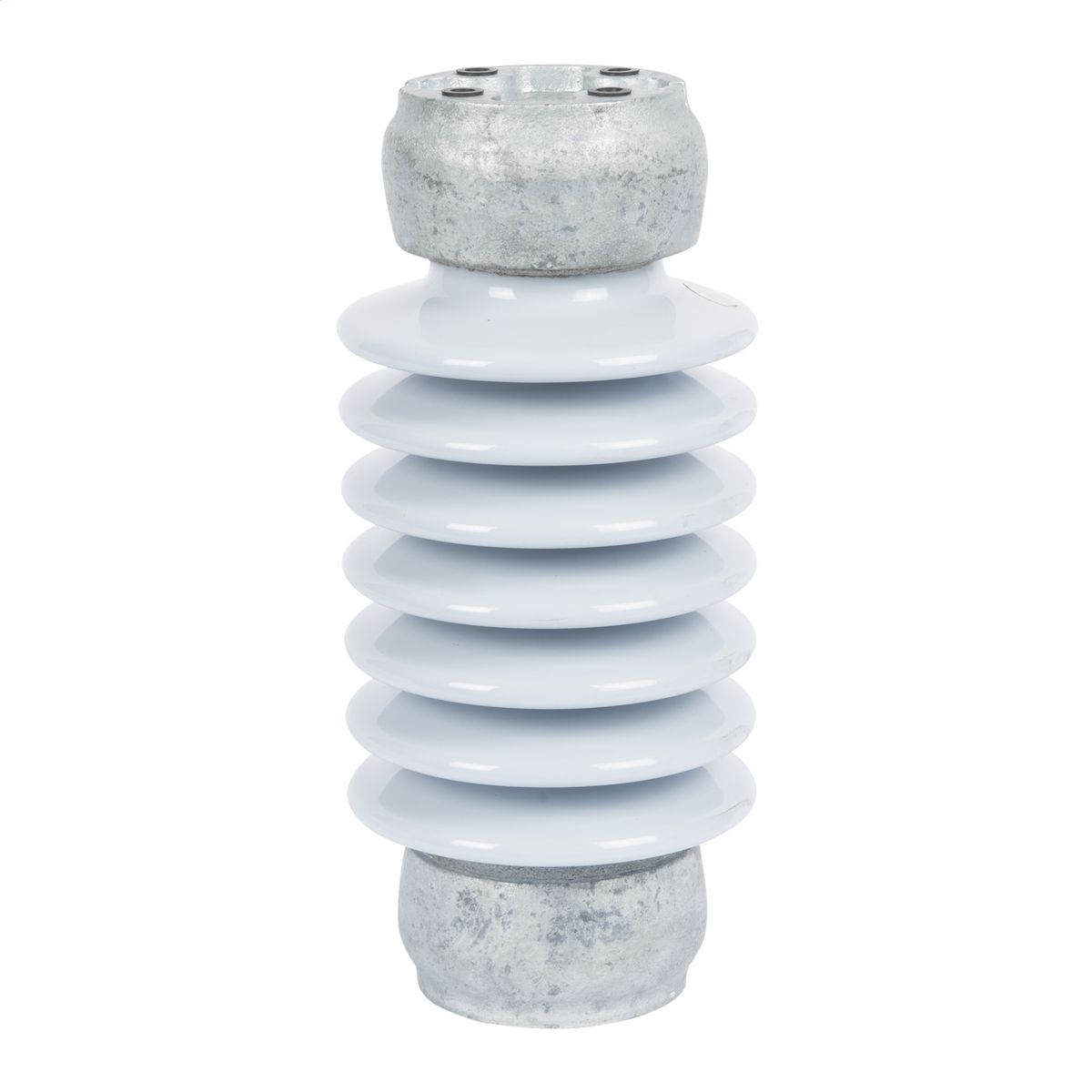

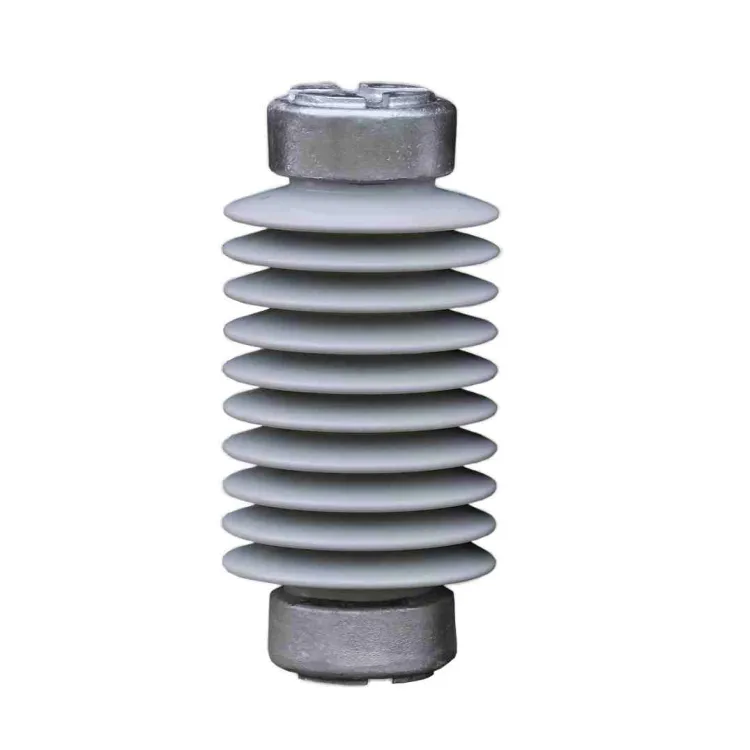

Porcelain Station Post Insulator meeting TR 208

Meets or exceeds ANSI standards for mechanical and electrical ratings
Solid-core construction with gray porcelain glaze as standard
Long lasting durability with galvanized end caps and proven interface system

Wholesales price

OEM production are accepted

Mechanical property:

  • Cantilever Bending Strength – Routine: 2000 lb
  • Fitting – Ground/Base: 3″ BOLT CIRCLE
  • Fitting – Live Line End: 3″ BOLT CIRCLE
  • Material: Porcelain/Ceramic
  • Material – End Fitting: Galvanized Steel
  • Number of Sheds: 7
  • Tensile Strength: Standard Strength
  • Tension Range: 10000 lb
  • Torsional Strength:8000 in-lbs. (900 N-m)

Electrical Rating:

  • BIL: 150 kV
  • Creep and Leakage Distance: 24″ (610mm)
  • Critical Impulse Flashover (CIFO) – Negative :250 kV
  • Critical Impulse Flashover (CIFO) – Positive :170kV
  • Flashover Voltage – 60 Hz Dry :110 kV
  • Flashover Voltage – 60 Hz Wet : 75 kV
  • Voltage Application :23 kV
  • Withstand Voltage – 60 Hz Wet :60 kV

Size:

  • Diameter – Shed(s): 6.22″ (158 mm)
  • Height: 14 in
  • Weight: 27.5 lb

Application:

Station Post



Brand

GKP

Package

Pallet

Standard

ANSI

Color

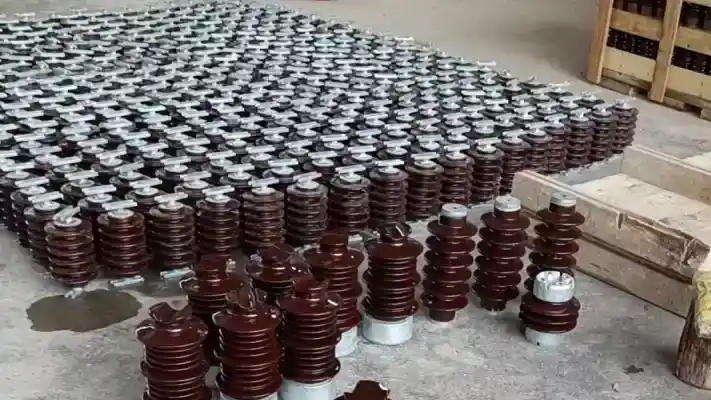

Grey, Brown

Customization

OEM production is accepted
