DT porcelain bushings ceramic bushing for LV transformer & HV transformers DIN 42530 DIN42531 DIN 42532 DIN 42533 DIN 40680 standard

OEM production is accepted

Description

One-stop factory of DIN 42530 , DIN42531, DIN 42532 ,DIN 42533 , DIN 40680 and ANSI type and BS type porcelain bushings for LV transformer & HV transformers

DIN Standard porcelain insulators including : DIN 42530 , DIN42531, DIN 42532 ,DIN 42533 , DIN 40680 etc . for LV transformer & HV transformers .

DIN Standard product including : The bushing for LV transformer & HV transformers .

Product including : DIN 42530  Serials    :  AB-250-42530    AB-1000-42530    AB-2000-42530     AB-3150-42350

DIN 42539  Serials  :   AB-250-42539   AB-1000-42539   AB-2000-42539     AB-3150-42359

DIN 42531  Serials  : 10NF250   20NF250    30NF250-600    30NF250-720     30NF250-900

30NF250-1320   ……

  • ANSI type bushing
  • BS type bushing
  • ANSI type bushing

Our advantage of porcelain bushings:

A. Professional Manufacturer of insulators and bushings above twenty years experience

B. Certificates: ANSI, IEC, BS, DIN, XIHARI, AS, SA

C. A wide range of low and high voltage insulators

  • Hollow insulator/bushing
  • Post insulator
  • suspension insulator
  • spool insulator
  • shackle insulator
  • stay insulator
  • pin insulator
  • line post insulator
  • wiring insulator
  • insulator string

Detailed specifications are as follows, please check all dimensions before your ordering.

transformer bushing

transformer bushing

transformer bushing

transformer bushing



transformer bushing

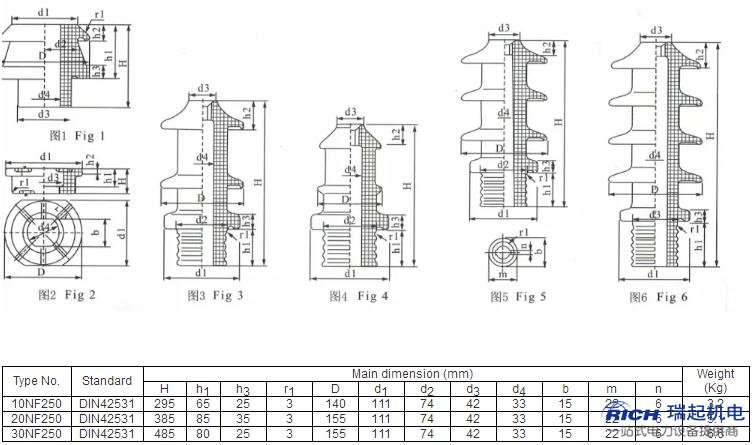

△Dimension of DNI type bushing

transformer bushing

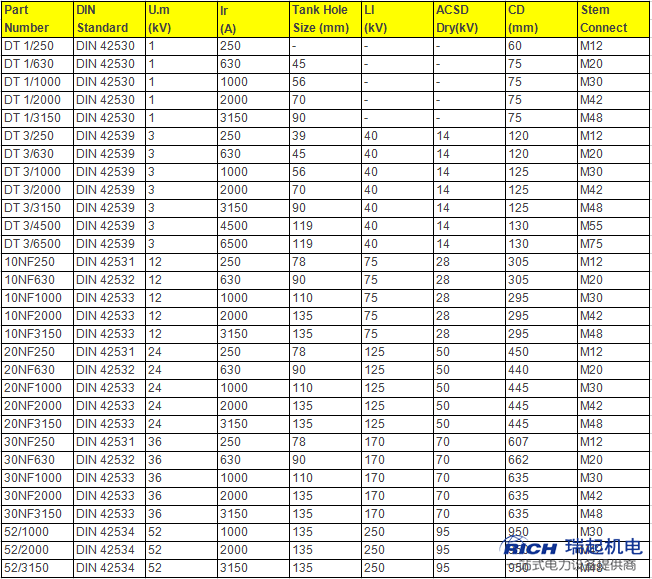

△Parameter of DIN type transformer bushing
transformer bushing

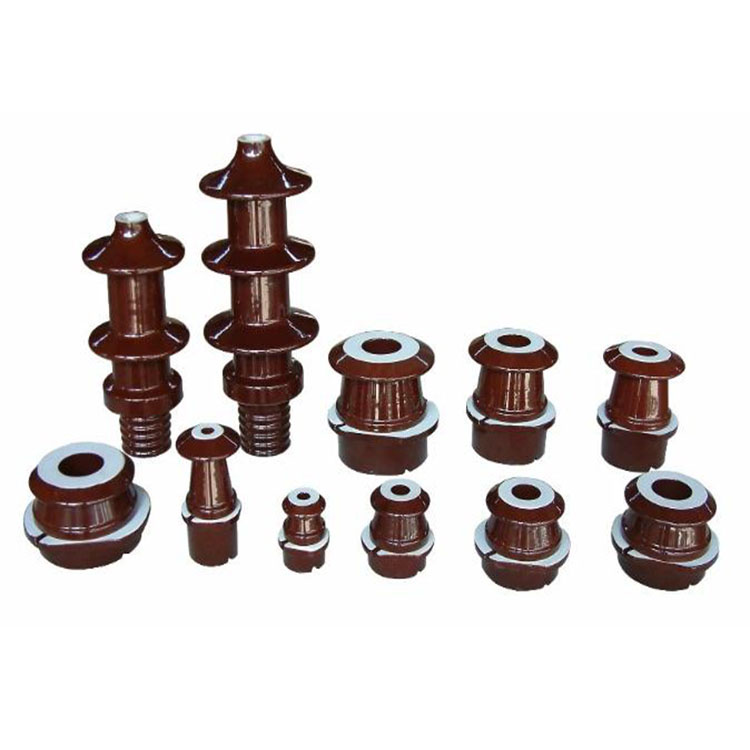

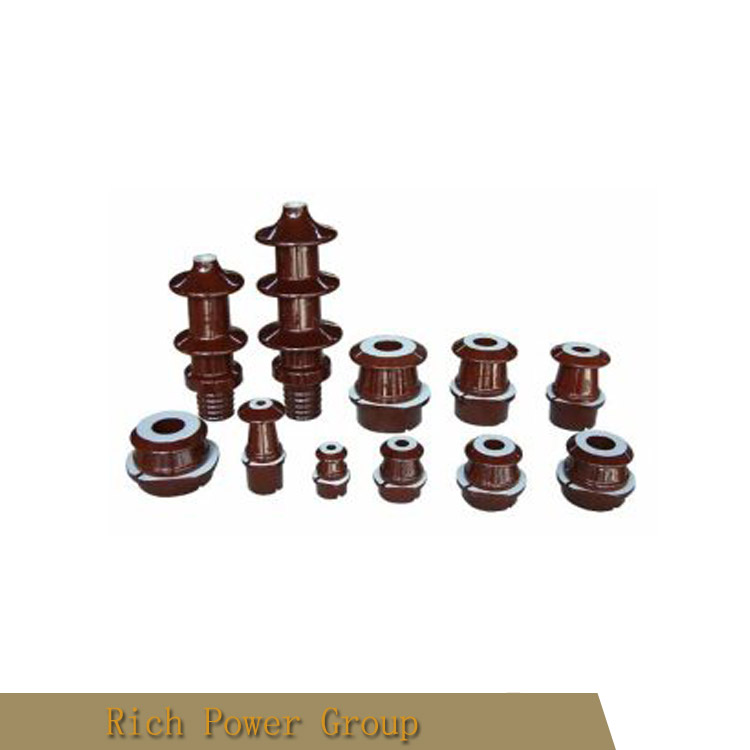

△Assembled transformer bushing

workshop

workshop of porcelain bushing

QC of porcelain bushing

△Workshop of porcelain insulator and bushing
