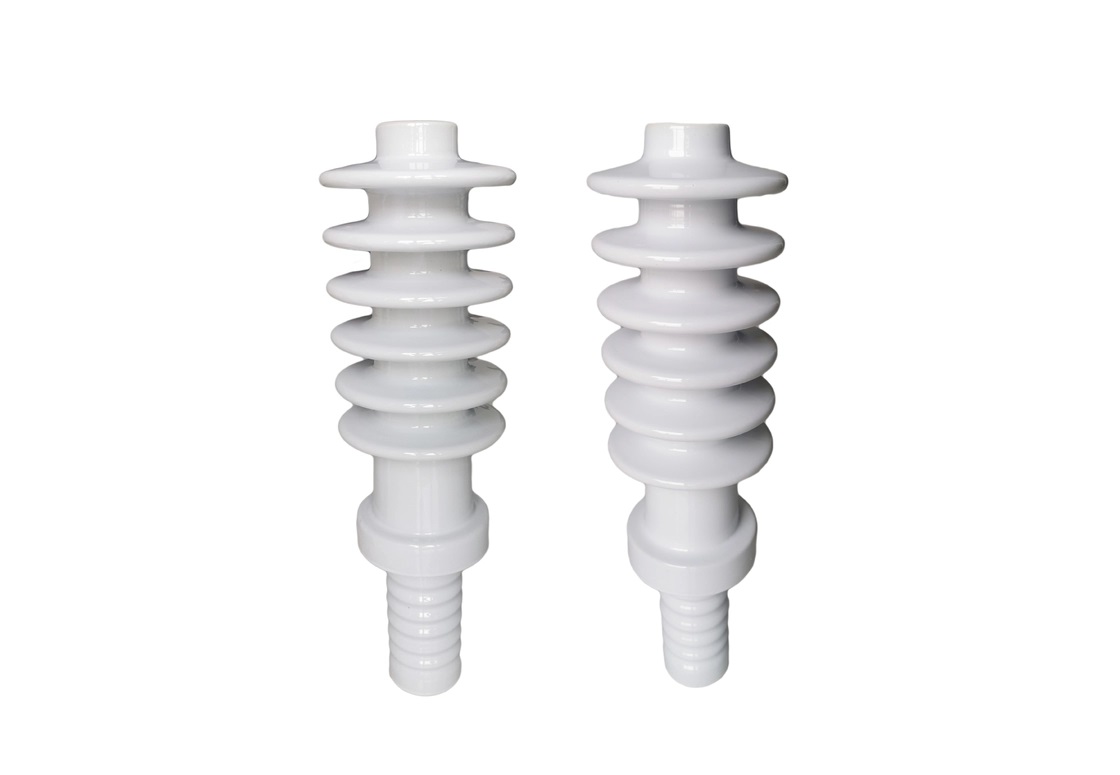

Gas insulated bushing/white color/excellent appearance/363mm height
We offer OEM and ODM production services. You can add your logo on products and package.
Specifications:
1. Total height: 356mm
2. Shed dia.:120mm
3. Creepage distance.: 645mm
4. Power frequency withstand voltage: 60kV
5. Impulse withstand voltage: 150kV
6. Sealing surface granding: 6S
7. Outlook inspection standard: JISC3802(A-1)/ IEC standard
Feartures:
Transformer bushing is to lead high and low voltage inside the transformer to the outside of the oil tank, not only as a lead to the ground insulation, but also bears the role of fixing the lead, transformer bushing is one of the transformer current-carrying elements, in the operation of the transformer, through the load current for a long time, in the case of short circuit outside the transformer through the short circuit current
Applications:
Gas insulated porcelain bushings are used for transformer and switch.
