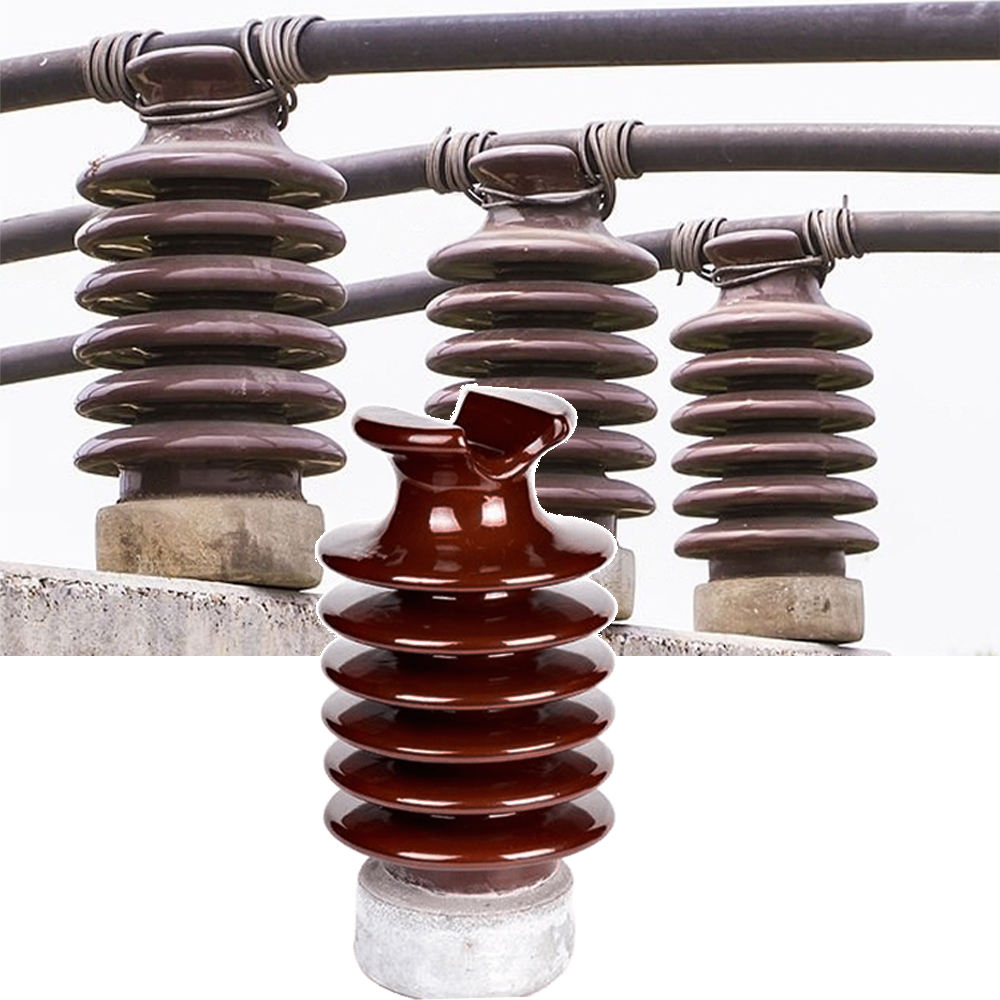

High Voltage Porcelain Post Insulators
Premium porcelain post insulators for substations, switchyards, and power transmission lines. Exceptional mechanical strength and electrical insulation for demanding applications.
Porcelain Post Insulators
Our porcelain post insulators are designed for substations, switchyards, and transmission lines where high mechanical strength and reliable electrical insulation are required.
- Available in solid core and hollow core designs
- Voltage ratings from 11kV to 500kV
- Mechanical loads from 8kN to 50kN
- Anti-pollution designs for contaminated areas
- Weather and UV resistant porcelain
- Galvanized or stainless steel fittings
- Custom designs for special applications
Applications of Post Insulators
Substations
Supporting busbars, disconnect switches, and other equipment in electrical substations
Switchyards
Isolating and supporting switching equipment in power generation facilities
Transmission Lines
Supporting conductors in transmission line dead-end and angle positions
Railway Electrification
Insulating overhead catenary systems in railway power supply
High Performance Porcelain Post Insulators for Electrical Power Systems
Porcelain post insulators are essential components in electrical power systems, providing both mechanical support and electrical insulation. At Changsha Rich Power, we manufacture high-quality porcelain post insulators suitable for various applications including electrical substations, switchyards, transmission lines, and industrial power systems.
Key Features of Our Post Insulators
Our porcelain post insulators are manufactured using high-grade electrical porcelain with optimal alumina content for superior mechanical and electrical properties. The porcelain is fired at high temperatures to ensure excellent density and uniformity. The glaze provides smooth surface finish for improved pollution performance and easy cleaning.
Design Standards and Certifications
Our post insulators are designed and tested according to international standards including IEC 60273, ANSI C29.10, DIN 48110, and other relevant specifications. We can also manufacture insulators to meet specific customer requirements and local standards. All insulators undergo rigorous testing including mechanical load tests, power frequency withstand tests, impulse withstand tests, and temperature cycle tests.
Customization Options
We offer various customization options including different mounting arrangements, special creepage distances for polluted areas, special fittings, and custom colors. Our engineering team can work with you to develop post insulators for specific applications and challenging environments.
