For international procurement managers in the electrical power and utilities sector, sourcing components for high-voltage and medium-voltage grid infrastructure requires a deep understanding of technical specifications. Among these components, the Metal Oxide Surge Arrester (MOA) is critical for protecting transformers and switchgear from overvoltages.
At the heart of every modern surge arrester lies the ZnO (Zinc Oxide) Varistor Block. This technical guide provides an expert-level breakdown of what a ZnO varistor block is, how it functions under IEC standards, and the key quality metrics you must evaluate during the procurement process.
1. Definition and Core Function
A ZnO Varistor Block (often referred to as a valve element) is a voltage-dependent, non-linear resistor composed primarily of Zinc Oxide (ZnO) mixed with small amounts of other metal oxide additives (such as bismuth, cobalt, and manganese). The old design of surge arrester was made in Sic varistor blocks, we are also producing sic varistors.
Its primary function is to act as a high-speed, automatic electrical switch.
- Under Normal Operating Voltage: It acts as an insulator, allowing only a negligible leakage current (typically in the microampere range) to flow to the ground.
- Under Surge Conditions (Lightning or Switching): Its resistance drops instantaneously by several orders of magnitude. This allows the high-energy surge current to be safely diverted to the ground, clamping the voltage to a safe level to protect downstream equipment.
2. Technical Mechanism: The Non-Linear V-I Characteristic
The performance of a ZnO varistor is governed by its highly non-linear Voltage-Current (V-I) characteristic. Unlike traditional silicon carbide (SiC) arresters of the past, ZnO varistors do not require series spark gaps because of their extreme non-linearity.

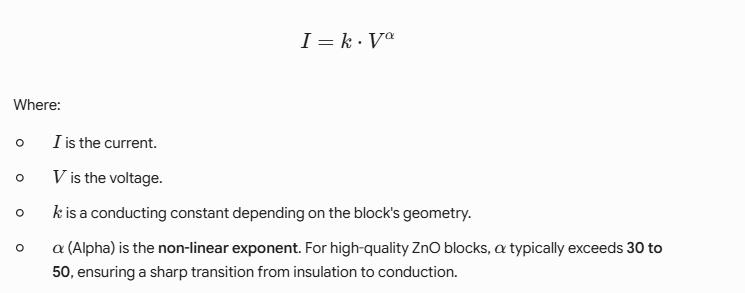

The behavior is mathematically expressed as:
3. Critical Procurement Metrics & IEC Compliance

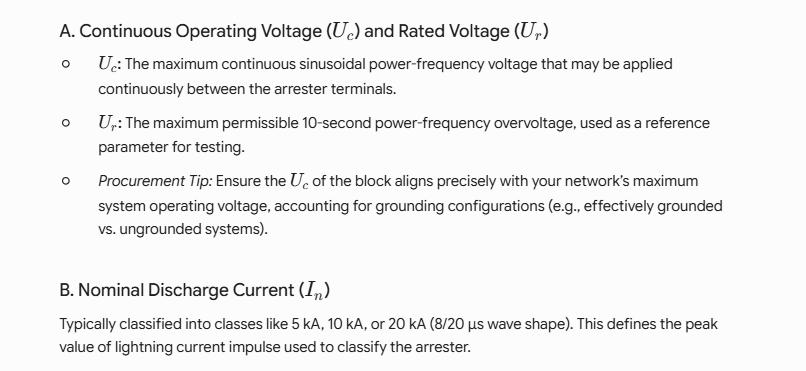

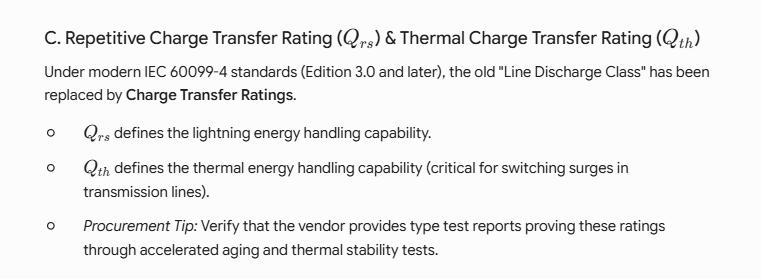

When evaluating manufacturers, datasheet compliance with IEC 60099-4 (the international standard for metal-oxide surge arresters without gaps) is non-negotiable. Procurement managers should focus on the following parameters:
D. Residual Voltage
The peak voltage that appears between the terminals of the varistor block when a discharge current flows through it. Lower residual voltage means better protection for your transformer.
4. Manufacturing Quality & Sourcing Risk Mitigation
Not all ZnO varistor blocks are created equal. The manufacturing process involves high-precision powder metallurgy, pressing, and high-temperature sintering (usually above 1200°C). Minor deviations in chemical composition or temperature consistency can lead to latent field failures.
When auditing a supplier’s factory, prioritize the following QA/QC indicators:
| Quality Indicator | What to Look For | Procurement Risk if Substandard |
| Microstructure Uniformity | Even distribution of ZnO grains and bismuth-rich grain boundaries. | Localized overheating (hot spots) leading to thermal runaway. |
| Side Coating / Insulation | High-quality glass or resin collar around the cylindrical edge. | Flashover (surface arcing) across the side of the block during a surge. |
| Aluminum Electrode Contact | Smooth, uniform metallization on the flat top and bottom surfaces. | High contact resistance, leading to localized burning under high currents. |
| Accelerated Aging Test | Evidence of 1,000-hour aging tests under elevated temperatures. | Premature degradation of Uc, leading to higher leakage current and catastrophic failure. |
5. Check-list for Procurement Managers
Before signing a supply contract for ZnO varistor blocks or the finished surge arresters containing them, ensure your technical team has verified:
- [ ] Type Test Certification: Issued by an independent, KEMA or CESI-certified third-party laboratory according to IEC 60099-4. All surge arrester of asiapower has KEMA test report
- [ ] Batch Test Reports (Routine Tests): Verification of residual voltage, leakage current, and power frequency reference voltage for every batch. All surge arrester of asiapower has type test report and routine test.
- [ ] Traceability: Raw material sourcing verification (purity of ZnO powder).
- [ ] Mechanical Sizing Tolerances: Strict diameter and height tolerances to ensure uniform stack compression inside the porcelain or polymer housing.
By understanding the technical nuances of the ZnO varistor block, international procurement managers can transition from buying on price to buying on Total Cost of Ownership (TCO), drastically reducing the risk of grid downtime and catastrophic equipment failures.
