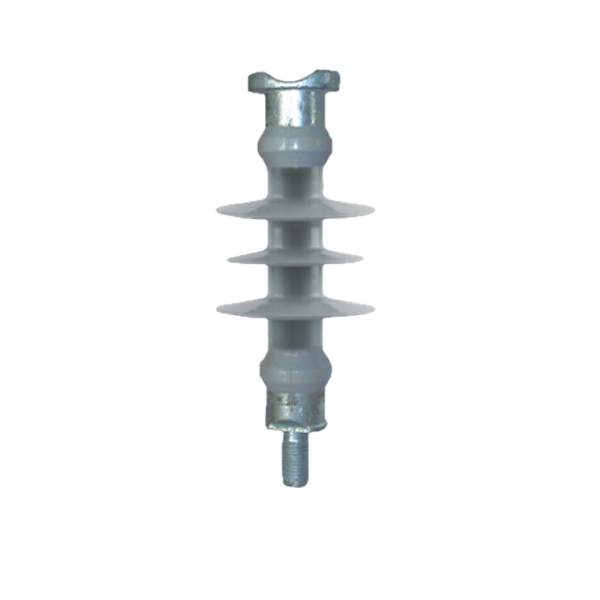

Our composite polymer pin insulators are designed for overhead distribution lines ranging from 12kV to 36kV. Utilizing advanced injection molding technology, the silicone rubber housing is chemically bonded to the fiberglass core, ensuring zero moisture ingress and preventing brittle fractures. Ideal for coastal areas, industrial zones, and high-altitude deployments.
Material: HTV Silicone Rubber (Superior Hydrophobicity)
Standard: Fully compliant with IEC 61109 / ANSI C29.18
Rated Voltage: 12kV, 15kV, 24kV, 33kV, 36kV
Cantilever Strength: 5kN – 12.5kN (Customizable)
Service Life: 25+ Years
Core Advantages (Addressing Procurement Pain Points)
| Feature | Procurement Benefit |
| HTV Silicone Housing | Self-cleaning properties reduce maintenance costs in high-pollution areas. |
| FRP Core Rod | High strength-to-weight ratio simplifies logistics and reduces tower load. |
| Hot-Dip Galvanized Fittings | ISO 1461 compliant coating (min 85μm) prevents corrosion for 20+ years. |
| One-Piece Injection | Eliminates interface breakdown risks; superior tracking resistance. |

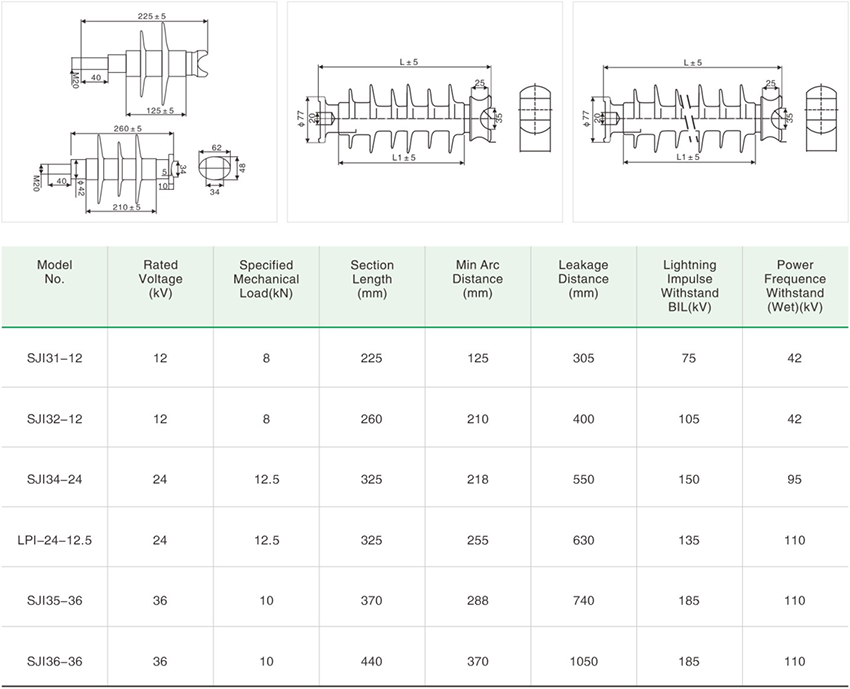

Technical Specifications:
Quality Assurance & Documentation
“Why choose us over Tier-1 brands?”
Type Test Reports: Full KEMA/CPRI/Equivalent laboratory test reports available upon request.
Strict Routine Tests: Every unit undergoes a visual inspection and a tensile load test (50% of SCL) before shipping.
Raw Material Traceability: We use only high-grade ECR (Corrosion Resistant) fiberglass rods.
6. Packaging & Logistics
Export Standard: Reinforced seaworthy plywood crates or high-strength corrugated cartons with internal dividers to prevent shed deformation.
Lead Time: 15–25 days for standard specifications.
Samples: Evaluation samples are available with expedited shipping (DHL/FedEx).
Ready to upgrade your grid reliability?
Contact: Speak with our technical sales team for custom SCL or Creepage requirements.
