Model: S9-M, S10-M, S11-M 10kv-35KV series
Rated Power: 10kv 11kV 35 kv 100kVA, 200kVA, 400kVA
Frequency: 50Hz/60Hz
Vector group: Dyn11 / Yyn0
Phase: 3
Standards: IEC, IEEE

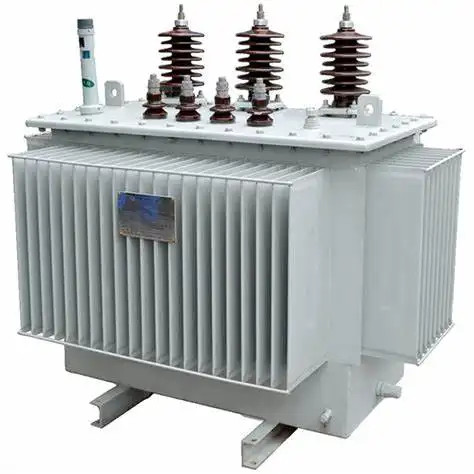

Full-sealed oil-immersed distribution transformes with the core which is made of quality cold-rolled silicon sheet and is of a full-miter non-puncture structure and its coil is made of quality oxygen-free copper.
Features:
- It adopts radiator oil tank of corrugated shteet type or expansion type.
- It doesn’t need oil conservator.
- The height of transformer is reduced.
- The transformer oil doesn’t contract with air.
- The no-load loss of Model S10-M is 20% lower than that of Model S9-M,
- The no-load loss of Model S11-M is 30% lower thanS9-M.

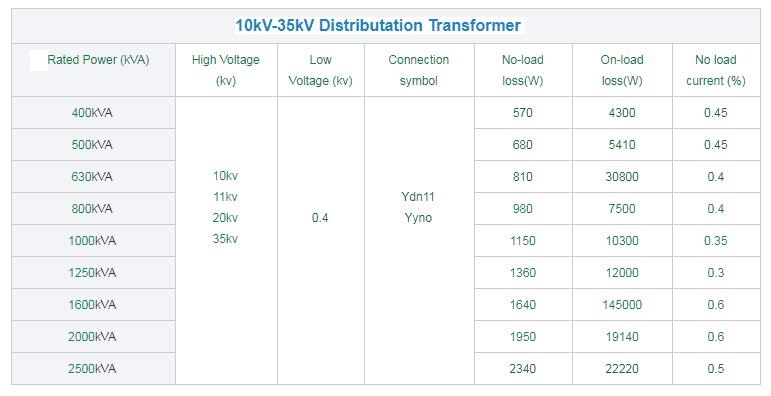

Parameters:
