—A Performance, Selection, and Value Assessment Guide for Projects Owners and Disconnector Factories
A Strategic Choice Beyond “Standard Parts”
In the design and operation of high-voltage disconnectors, the insulator is far from a passive standard component. Its performance directly determines the switch’s mechanical reliability, electrical safety, and total cost of ownership (TCO). As a manufacturer with deep technical heritage, we are committed to sharing expertise with engineers and procurement specialists to help you select the most optimized and valuable insulation solution for your projects.
Why Porcelain Remains the Benchmark for Disconnectors?
For disconnector applications enduring significant operating torque, short-circuit electrodynamic forces, and long-term environmental stress, porcelain insulators offer an unmatched balance of properties:
- Unrivaled Mechanical-Electrical Stability:

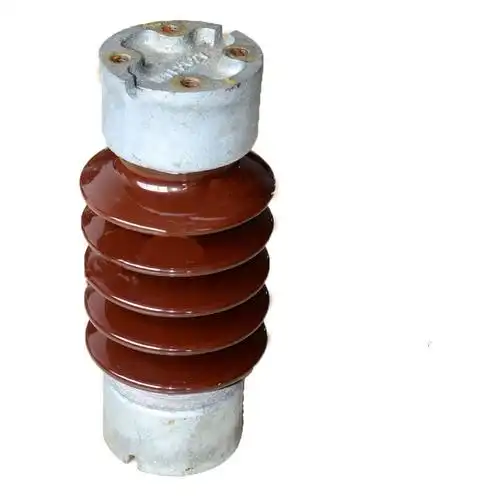

- Exceptional Bending Strength: Post insulators designed specifically for disconnectors typically require a cantilever strength of 8-12 kN or higher (depending on voltage class), ensuring zero plastic deformation under extreme operation.
- Superior Environmental Resistance: The inorganic ceramic material is completely immune to UV degradation and ozone attack, eliminating the aging and embrittlement risks associated with organic composites. This ensures a design life exceeding 40 years and a significantly lower TCO.
- Stable Electrical Performance: Even under damp, condensing, or lightly polluted conditions, the glazed porcelain surface maintains high surface resistivity, ensuring reliable anti-flashover performance.
- Engineering Designed for Disconnector Duty:
- Stress-Corrosion Resistant Design: The cementing of metal fittings to the porcelain employs Pre-stressed Cement Technology or High-Strength Epoxy Bonding, ensuring uniform internal stress distribution and eliminating the risk of “loosening” under long-term cyclic stress.
- Optimized Shed Profile: Through aerodynamic simulation and electric field analysis, we design alternating-shed and deep-rib profiles to effectively increase creepage distance, enhancing self-cleaning capability and pollution flashover withstand voltage in coastal or industrial areas.
- Comprehensive Customization: Beyond standard products, we can provide full-process customization—from material formulation and structural design to testing validation—based on your specific mounting style (horizontal rotate, vertical break), seismic requirements, altitude, and special environments (e.g., coastal, desert).
A Practical Selection Guide for You:
When selecting porcelain insulators for disconnectors, we recommend a comprehensive evaluation from the following aspects:
- Key Performance Parameter Verification:
- Mechanical Load: Verify that the rated bending/torsional strength has sufficient safety margin (recommended >1.5 times the operating force).
- Electrical Parameters: Power frequency dry/wet withstand voltage, lightning impulse withstand voltage, specific creepage distance (complying with IEC 60815 or ANSI C29.10).
- Temperature Cycle & Mechanical Durability Tests: Require test reports from suppliers based on stringent standards like IEC 62217, verifying thermal shock and mechanical fatigue resistance.
- Quality & Certification Systems:
- Ensure the manufacturer has complete in-house quality control, from high-purity alumina raw materials to precision firing (>1400°C).
- Verify products are certified by international authorities (e.g., KEMA, CESI tests) and comply with relevant standards like IEC, GB, ANSI.
- Value Assessment, Not Just Price Comparison:
- Consider Total Cost of Ownership (TCO): The ultra-low failure rate and minimal maintenance of high-performance porcelain insulators avoid significant costs from outages and replacements.
- Supply Chain Reliability: Partnering directly with a vertically integrated factory with stable capacity ensures long-term supply stability, rapid technical response, and protection of your design IP.
Our Commitment: Support as Your Engineering Partner
We are more than a supplier; we are a partner in solving your technical challenges. We offer:
- Free Technical Consultation & Selection Support: Our engineering team can assist in analyzing your operating conditions and recommending the optimal solution.
- Sample Testing & Joint Validation: You are welcome to request samples for independent third-party testing.
- Flexible Production & Logistics: We support projects from small-batch pilot runs to large-scale deliveries, with complete export packaging and documentation.
