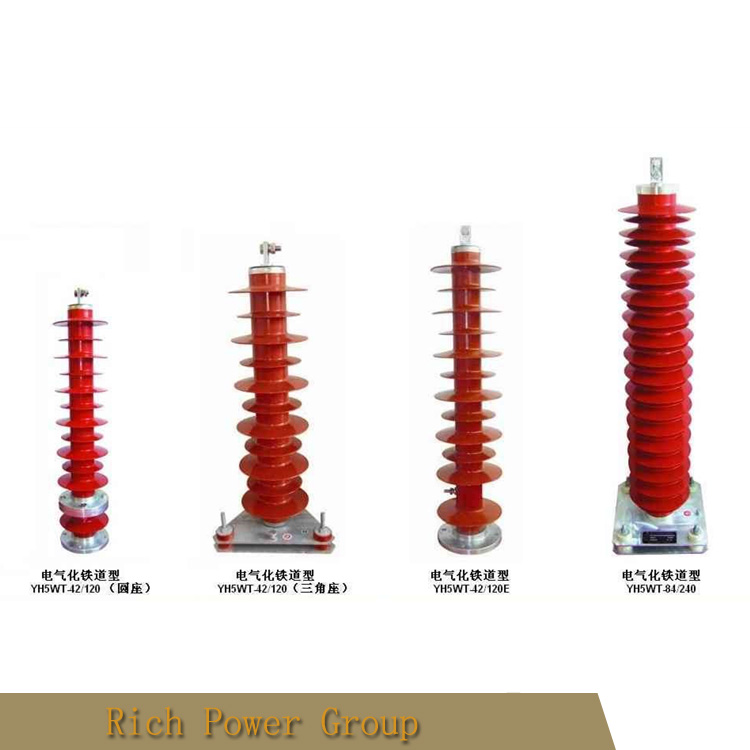

42kV lightning arrester Surge arrester with polymer housing for electric railway

surge arrester manufacturer and supplier, lightning arrester factory

Surge arrester selection guide here is for the polymer housing surge arrester in the electric railway system. We manufactured MOA since 1990, and we also make the MOV by ourselves.

There are two types of housing for surge arresters. Silicone polymer housing or composite metal oxide surge arrester and porcelain housing metal oxide surge arresters. Surge arrester rating calculation is a guide for selection. Both types of surge arresters are the key equipment in the electric power system. They are protecting the equipment from the lightning impulse and overvoltage impulse.

Rich Power Company offers a complete range of surge arresters for high and medium voltage applications. The range comprises of AC and DC solutions up to 1,100kV and arresters for special applications like railways, DC-voltage limiting devices and many other purposes. The designs comply with the IEC 60099-4 and ANSI/IEEEC62.11.

The following type of surge arrester is used in the electric railway system protecting electric system, overhead line net, Motor against atmospheric overvoltage impulse and operation overvoltage impulse.

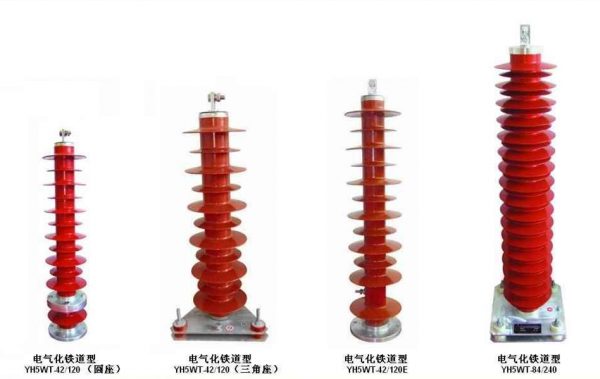

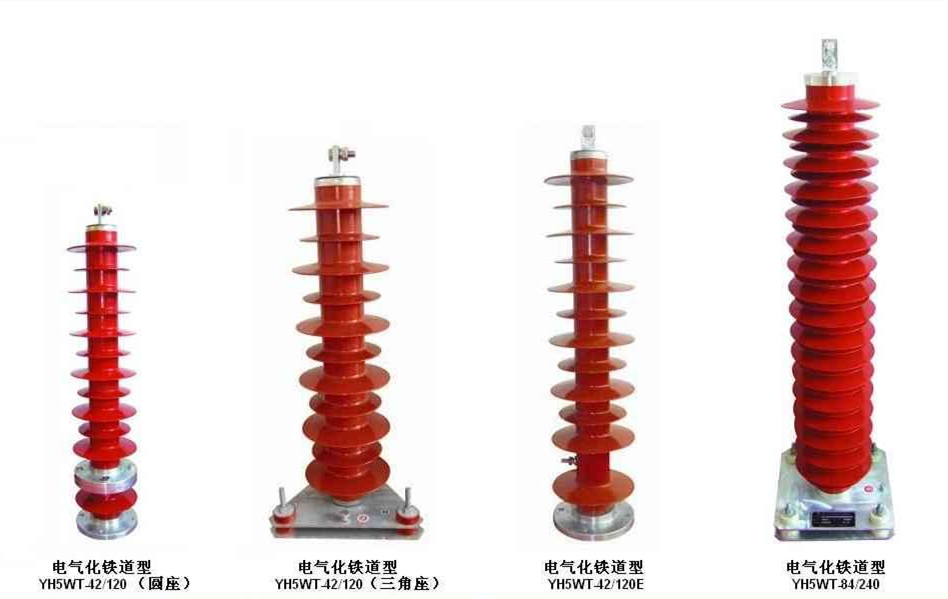

Type A – AC type surge arrester for Normal railway system:

surge arrester

Specifications and Types:

 surge arrester parameter

Type B – DC type surge arrester for Fast speed railway system:

surge arrester manufacturersurge arrester

Specifications and Types:

specifications

Products features:

  • Easy installation and maintenance.
  • Good sealing capability to ensure reliable operation.
  • The protection and reliability of the surge arrester have been greatly enhanced.
  • Available in normal duty, heavy-duty and heavy-duty riser pole classifications
  • Superior performance with porcelain housing
  • The Evolution surge arrester offers significant improvements in protective characteristics and 60 Hz temporary over voltage (TOV) capability for all common over-head and riser-pole applications
  • Meet or exceed the requirements of IEEE Std C62.11 standard or IEC 60099-4
    The hollow core design offers improved cantilever strength and directional venting
  • Moisture-impervious wrap
  • Optionally available with extra creepage for use in areas with extreme conditions of natural and man-made atmospheric pollution

Surge Arrester Applications:

  1. Protection of AIS and GIS substation equipment
  2. Protection of AC and DC traction systems
  3. HVDC protection
  4. Protection of series capacitor banks
  5. Protection of cables
  6. Protection of transmission lines
  7. Installation in polluted areas and areas with high seismic activities
Brand

GKP

Material

Polyer housing, zno varistor

Voltage

High voltage
